Canon imagePROGRAF 4100
Canon imagePROGRAF 4100

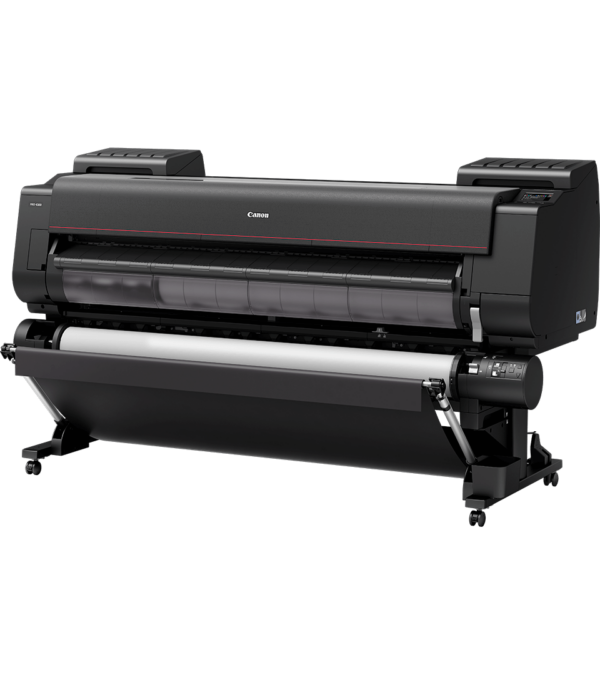

Canon imagePROGRAF PRO-6100

3871C005AA

$11,541.00

Brand: Canon

Series: iPF Pro

Model No: Pro-6100

Type: Ink

Click Here to View the Brochure

Share
SHARE
Share

Description

The 60-inch Canon imagePROGRAF PRO-6100 printer is designed to exceed expectations for image quality and color consistency in a large format printer. The use of a 1.28-inch wide 12-channel integrated compact print head, LUCIA PRO ink set plus Chroma Optimizer, a high-precision mechanical platform and the L-COA PRO high-speed image processing engine achieves a balance between exceptional print quality and speed. Watch here for the All new 2020 Canon imagePROGRAF PRO Series(Pro-2100, Pro-4100, Pro-4100s, Pro-6100 and Pro-6100s).

The imagePROGRAF PRO-6100 has been designed to include intelligent technology for advanced media handling, increased security features, borderless printing and improved operational design.

Bring your prints to life with the imagePROGRAF PRO Series.

Features :

  • Intelligent Media Loading
  • Remaining Media Estimation
  • The large 4.3″ LCD operation panel utilizes smart phone touch screen technology for easy operation.
  • Developed with advanced security features, including support of secure PIN printing to protect data and the ability to disable printing, increasing administrative control of end-user printing.
  • The LUCIA PRO ink set adopts 11-color pigment inks and a Chroma Optimizer to meet the demands of even the most critical photographer.
  • No Switching of Black Inks
  • The PF-10, a 1.28”-wide print head with 18,432 nozzles equipped with anti-clogging FINE technology, generates fast print speeds while reducing the possibility of clogging.
  • L-COA PRO High-Speed Image Processing Engine
  • Color Calibration produces consistent color reproduction. This new printer includes an upgraded, built-in color densitometer that offers precise calibration and color matching.
  • The Device Management Console software, lets you perform color calibrations remotely.
  • High Precision Mechanical Platform
  • The Multifunction Roll System, standard with the PRO-6100, utilizes Canon’s new intelligent media handling.
  • Wi-Fi® Connection
  • Print From USB Thumb Drive
  • High Capacity Ink Tanks
  • The multipositional basket can be freely adjusted to enable various output positions and options
  • 500GB Hard Drive

What’s In The Box

  • Canon imagePROGRAF PRO-6100
  • Multifunction Roll Unit with Tools (Separate Box)
  • Stand
  • Tools and Screws
  • US AC Power Cable
  • Print Head PF-10330ml Starter Ink Tanks (MBK/BK/C/M/Y/PC/PM/GY/PGY/R/B/CO)
  • 2″ Roll Holder with 3″ Core Adapters
  • Quick Set-up Guide
  • Safety and Environmental Sheet
  • Setup Guide
  • Printer Stand Setup Guide
  • Print Head Alignment Sheet
  • USB Connection Sheet
  • Software Discs (Windows Drivers)
  • Sample media (5 sheets of Heavy Weight Coated HG paper A2 size)
  • Call Center Notice Card (USA)
  • User Registration Card
  • Printer and Print Head Warranty Cards (USA and Canada)
  • Canon USA Media Compatibility Sheet
  • iWR Service Terms leaflet

Click here to check some of Canon’s Large Format Printers.



Additional information

Brand

Series

Model

Printer Type

11-Color plus Chroma Optimizer 60-inch Printer
OS Compatibility

Microsoft Windows: 32 Bit, Vista, 7,8, 8.1,10
Server 2008, 64 Bit: Vista, 7,8, 8.1,10,
Server 2008/R2, Server 2012/R2, Windows Server 2019
Apple Macintosh: OS X 10.11.6, macOS 10.12~macOS 10.15
Maximum Media Roll Diameter

6.7 (170mm)
Print Languages

SG Raster (Swift Graphic Raster), PDF (Ver.1.7),
JPEG (Ver. JFIF 1.02)
Physical Dimensions

46.0 (H) x 78.7 (W) x 38.7 (D) (with basket open)
Weight

approx.368 lbs (roll holder included, no inks, no print heads)
Software

imagePROGRAF PRO Printer Driver
Other software available as Download from Web.
Print Technology

Canon Bubblejet on Demand 12 colours integrated type
(12 chips per print head x 1 print head)
Print Resolution

2,400 x 1200 dpi
Number of Nozzles

18,432 nozzles (1536 nozzles x 12 colour)
Line Accuracy

±0.1% or less
User adjustments necessary. Printing environment and
media must match those used for the adjustments.
CAD paper required: Plain paper, CAD tracing paper,
coated paper, CAD translucent matte film only
Nozzle Pitch

600 dpi x 2 includes Non-firing nozzle detection and
compensation system
Ink Droplet Size

minimum 4 pl per colour
Ink Capacity

Sales Ink: 160ml/330ml/700ml
Bundled Starter Ink: 330ml
Ink Type

Pigment inks – Black, Matte Black, Cyan, Magenta, Yellow,
Photo Cyan, Photo Magenta, Grey, Photo Grey, Red, Blue,
Chroma Optimiser
Standard Interfaces

USB A Port: USB Memory Direct Print for JPEG/PDF files
USB B Port: Built-in Hi-Speed USB 2.0
Ethernet: 10/100/1000 base-T
Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b
*Please refer to user manual how to activate/deactivate the wireless LAN
Hard Drive

500GB (Encrypted HDD)
Memory

PRINT TIME FOR A0 PAGE SIZE

Media Type Print Mode: Print Time

Plain Paper Print Mode – Print Time
Fast 1:37 min
Standard 2:49 min

Coated Paper Print Mode – Print Time
Standard 2:49 min
High Quality 5:35 min

Glossy Photo Paper Print Mode – Print Time
Standard 5:35 min
High Quality 8:50 min
Media Feed and Output

Upper Roll Paper: One Roll, Front-loading, Front Output
Lower Roll Paper: One Roll, Front-loading, Front Output
Cut Sheet: Front-loading, Front Output (Manual feed
using media locking lever)
Media Width

Roll paper: 152.4 -1524 mm
Cut sheet: 152.4 – 1524 mm
Media Thickness

Roll/Cut: 0.07 – 0.8 mm
Minimum Printable Length

203.2 mm
Maximum Printable Length

Roll paper: 18 m
(Varies according to the OS and application)
Cut sheet: 1.6 m
Media Core Size

Internal diameter of roll core: 2”/3”
Margins Printable area

Roll paper: Top: 3 mm, Bottom: 3 mm, Side: 3 mm
Roll paper (borderless): Top: 0 mm, Bottom: 0 mm,
Side: 0 mm
Cut sheet: Top: 3 mm, Bottom: 20 mm, Side: 3 mm
Margins Recommended area

Roll paper: Top: 20 mm, Bottom: 3 mm, Side: 3 mm
Cut sheet: Top: 20 mm, Bottom: 20 mm, Side: 3 mm
Media Feed Capacity

Roll Paper: Two rolls. Automatic switching is possible.
Cut Sheet: 1 sheet
Media Take-up roll unit

Dual direction roll take up unit allowing print surface to be
wound inside or outside of the rol
Borderless Printing Width (Roll Only

515mm(JIS B2), 728mm(JIS B1), 1030mm(JIS B0),
594mm(ISO A1), 841mm(ISO A0), 10”, 14”, 17”, 24’’, 36’’,
42”, 44”, 50’’, 54’’, 60’’,257mm(JIS B4)*, 297mm(ISO
A3)*, 329mm(ISO A3+)*, 420mm(ISO A2)*,6’’, 8”*, 12’’,
16”*, 20’’, 22’’, 30”*, 300mm*, 500mm, 600mm 800mm,
1000mm and custom roll width (152.4~1524mm)
*Some environmental conditions may not produce the desired result
Maximum number of delivered prints

Standard position: 1 sheet
Flat position: A2 landscape, glossy paper less than 10
sheets, Coated paper less than 20 sheets (excludes strong
curled condition)
Physical Dimensions WxDxH (mm) and Weight (Kg)

1999 x 984 x 1168 mm (Basket Open)
1999 x 766 x 1168 mm (Basket Closed)
171kg (including Roll Holder Set and Roll unit, excluding
ink and print heads)
Packaged Dimensions WxDxH (mm) and Weight (Kg)

Printer (Main unit with pallet): 2227 x 915 x 1022 mm
212kg
Roll Unit: 2133 x 562 x 461 mm
42kg
Power Supply

AC 100-240V (50-60Hz)
Power Consumption

Operation: 97 W or less
Sleep mode: 2.1W or less
Default setting for the time to enter the Sleep mode:
Approx. 5 Minutes
Power off: 0.3 W or less
Operating Environment

Temperature: 15~30°C,
Humidity: 10~80% RH (no dew condensation)
Accoustic Noise (Power/Pressure)

Operation: approx. 48 dB (A)
(Glossy paper, Print priority: Standard)
Standby: 35 dB (A) or less
Operation: 6.6 Bels or less
(Glossy paper, Image, Print priority: Standard)
(Measured on ISO 7779 standard)
Certificates

TUV, CB
What's in the Box?

Printer, 1print heads, 3 inch paper core attachment,
Power Cable, 1 set of starter ink tanks, Set up guide,
Safety/Standard Environment leaflet, User software
CD-ROM (Win), PosterArtist Lite CD-ROM,
EU Biocide Sheet, Eurasian Economic Union Sheet,
Important Information Sheet
Optional Items

2/3” Roll Holder: RH2-66
Roll Unit: RU-63
User Replaceable Items

Ink Tank: PFl-1100 (160ml), PFl-1300 (330ml),
PFl-1700 (700ml)
Print Head: PF-10
Cutter Blade: CT-07
Maintenance Cartridge: MC-30
Disclaimer

Canon recommends you use Canon Media for the best results. Please check media (paper)
compatibility list to see which variety of paper/media is recommended.

http://downloads.canon.com/nw/pdfs/product-showcase/bus-consumables/consum_LargeFormat.pdf
