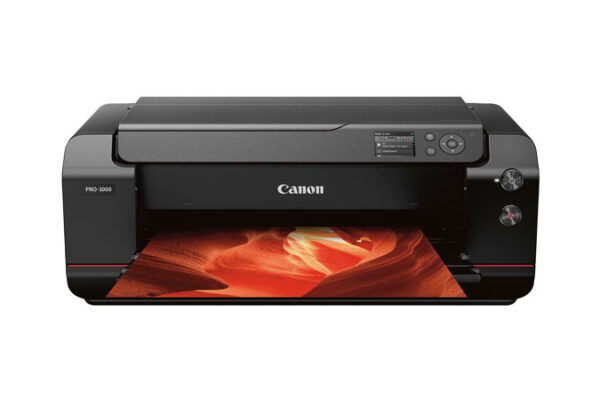

Canon imagePROGRAF PRO-1000

Canon imagePROGRAF PRO-1000

$1,300.00

Brand: Canon

Series: Pro-1000

Model : imagePROGRAF

Type: Ink

Click Here to View the Brochure

Share
SHARE
Share

Description

Professional photographers openly share what they need, want, and even don’t want in a printer. Like stunning black and white prints with deep blacks and detailed gradations. A wide color gamut that accurately reproduces even the most difficult colors. And at Canon, we listen. Introducing the Canon imagePROGRAF PRO-1000. A 17″ wide format professional printer with an 11-Color plus Chroma Optimizer ink system that does it all. Arguably one of the best printers we’ve ever engineered. Distinguished by a bold red line.

Features :

  • AirPrint4
  • Borderless Printing
  • Canon PRINT app5
  • Grayscale Photo Printing
  • Photo Printing
  • Wireless PictBridge6
  • Wireless Printing7
  • Pro Gallery Print8
  • PIXMA Cloud Link9
    • ANTI-CLOGGING TECHNOLOGY:
      The FINE print head institutes a tubular ink delivery system. This generates faster print speeds and reduces the possibility of clogging. Additionally, ink ejection conditions are precisely checked with sensors, and if a clog is detected, another nozzle automatically provides backup. In addition to preventing wasted prints due to clogging, this also reduces the frequency of which nozzle cleaning is required.

      • SMARTER NOZZLES
        Engineered with 18,432 nozzles and sensors that continuously monitor status and deliver optimum results.



    • AIR FEEDING SYSTEM:
      The Canon Air Feeding System prevents each page from skewing for accurate ink placement, regardless of paper type. A series of openings located on top of the platen vacuum-grip the paper as it feeds through the printer. The Air Feeding system creates a printing environment that keeps a consistent height between the print head and the media being used. Variances in height can occur due to paper curl or variations in temperature and humidity. A consistent level surface leads to remarkable ink Droplet accuracy and improved image quality.

        • AIR FEEDING SYSTEM
          A series of openings located on top of the platen vacuum-grip the paper as it feeds through the printer.
      • SKEW CORRECTION
        Skew Correction function guarantees that all types of paper, including thick fine art type papers, can be fed without the need for reprints.



  • LUCIA PRO INK SYSTEM:
    The LUCIA PRO 11-color plus Chroma Optimizer ink system satisfies the demands of the most critical photographer or graphic artist. Denser droplet placement provides a broader color gamut and improved gloss uniformity for superb glossiness and anti-bronzing. Incredibly accurate color reproduction, outstanding image clarity, and enhanced detail in darker areas distinguish each print. On fine art papers, higher black density renders even the finest shadow detail, for a print that becomes a work of art.

      • 11-INK SYSTEM PLUS CHROMA OPTIMIZER
        Utilizing new pigment ink with modified compositions and new colors, LUCIA PRO INKS have enabled a broader color gamut and greater shadow detail reproduction in dark areas.
      • LUCIA PRO INKS
        • Increased density of ink on the paper improves color gamut.
        • Even light reflection contributes to improved glossiness and image clarity.
        • Contributes to anti-bronzing on glossy paper.
  • BLACK DENSITY AND DARK SHADOW AREAS:
    Deep blacks, which make the image crisp, and precise gradation can be attained across all media types. On glossy media, light reflection off of a printed image is stabilized by the Chroma Optimizer and the newly formulated Photo Black ink. Overall, your images will enjoy an enhanced dynamic range.

      • CORE TECHNOLOGIES
        The print head, ink and image processing engine mounted on the imagePROGRAF PRO-1000 provide high levels of image quality and productivity.
  • WIDE COLOR GAMUT:
    A new ink system adopts 11-color inks and Chroma Optimizer ink. This system helps you achieve an improvement in color-reproduction, image clarity, and enhanced darker areas. It faithfully reproduces colors and dark areas crucial for printing works of art. The newly formulated blue and magenta inks will help recreate the finest details when printing nightscapes and sunsets.
  • NO SWITCHING OF BLACK INKS:
    On other printers, switching from Matte Black to Photo Black consumes a significant amount of ink and time. The imagePROGRAF PRO-1000 is designed to work seamlessly when changing media types. Matte Black and Photo Black inks have their own dedicated nozzles, so no switching is necessary. You can print on fine art paper then glossy paper with no worries, no changes, and no waste.
  • FAST PHOTO PRINTING:
    At the heart of the imagePROGRAF PRO-1000 is a 1.28″ wide print head. Expanding the printing area by 50% with each movement of the print head, print speeds are drastically improved. This increases your productivity through efficient high-speed printing.

      • L-COA PRO
        This high-precision control engine performs the high-speed processing of massive volumes of image data, generates the printing data, and controls the optimal ink layout for the purpose of achieving high resolution prints. It represents the brain of the Canon imagePROGRAF PRO-1000.
  • PRINT STUDIO PRO v 2.0 PLUG-IN:
    This powerful plug-in software provides professional photographers with intuitive printing solutions. New functions added provide enhancements to your printing workflow.

      • Contrast Reproduction
        By using this function in combination with the Digital Lens Optimizer included in Digital Photo Professional, you can print sharp, high-definition images without losing any of the qualities present when the image was photographed.
      • Soft Proofing
        Allows for visual proofing of the final print, taking into account for color reproduction for a specific paper type.
      • Improved UI
        Enjoy intuitive operation and settings such as Favorites, History, and several Color Adjustment Functions.
      • Seamless Integration
        Seamlessly works with leading image editing software programs.
      • 16-bit Workflow
        Allows for 16-bit processing of images to dramatically improve your final output.
  • PRINTER MANAGEMENT SOLUTIONS:
    Every detail in your print must be perfect, why not have the same obsession for your workflow? The Canon imagePROGRAF PRO-1000 is precisely managed with these powerful management tools.

What’s in the Box

PIXMA PRO-1000 Wireless Professional Inkjet Printer

  • Canon imagePROGRAF PRO-1000 17″ Professional Photographic Inkjet Printer
  • Document Kit:   Getting Started
    Important Information Sheet
    Safety Environment Information
    Setup Software & User’s Guide CD-ROM
    Registration Card
    Warranty Card
  • Ink Tanks:   PFI-1000 Matte Black (80 ml)
    PFI-1000 Photo Black (80 ml)
    PFI-1000 Cyan (80 ml)
    PFI-1000 Magenta (80 ml)
    PFI-1000 Yellow (80 ml)
    PFI-1000 Photo Cyan (80 ml)
    PFI-1000 Photo Magenta (80 ml)
    PFI-1000 Gray (80 ml)
    PFI-1000 Photo Gray (80 ml)
    PFI-1000 Red (80 ml)
    PFI-1000 Blue (80 ml)
    PFI-1000 Chroma Optimizer (80 ml)
  • Maintenance Cartridge:   MC-20 (User Replaceable)
  • Power Cord
  • Print Head
  • 5 Sheets Photo Paper Pro Luster LU-101 (8.5″ x 11″)

Here are some of Canon’s Large Format Printers.

Additional information

Weight 100 lbs
Brand

Series

Pro-1000

Model

imagePROGRAF

Printer Type

Wireless Professional Inkjet Printer

Maximum Print Length

25.5 Inches

Printer Languages

Swift Graphic Raster
Job Control Language : IVEC
Status Reply : IVEC

Physical Dimensions

28.5 (W) x 17.1 (D) x 11.2 (H)

Weight

71.2 lbs.

Class

17”

Ink Type

12 x Pigment : MBK/PBK/C/M/Y/PC/PM/GY/PGY/R/B/CO

Maximum Print Resolution [1]

2,400 x 1,200 dpi

Printing Speed

A2 (LU-101 colour): Approx. 3 min 35 sec
A2 (PT-101 colour or mono): Approx. 6 min

Dimensions, Weight

Approx. 723 x 433 x 285 mm
Weight approx. 32 kg (including print head and inks)

Power Supply

AC 100-240V (50-60Hz)
Power consumption (approx 37W) [3]
Standby consumption (approx 2.5W)
Power off (approx 0.4W)

Operational Environment

Temperature: 5-35°C, Humidity: 10-90%RH
(no dew condensation)

Acoustic Noise

approx. 41.0 dB(A) – Photo (4 x 6“) [5]
approx. 40.8 Db(A) – Document (A4. B/W), Quiet Mode OFF [6]
approx. 40.4 Db(A) – Document (A4. B/W), Quiet Mode ON

Memory

Operation Panel Display

3.0” (320 x 240 TFT LCD), Key x 13, LED x 2
21 Languages Selectable: Japanese / English / German / Italian
/ Spanish / Portuguese / Dutch / Polish / Russian / Danish /
Norwegian / Swedish / Finnish / Czech / Simplified Chinese /
Traditional Chinese / Hungarian / Thai / Indonesian / French
/ Turkish

INTERFACE TYPE & SOFTWARE



OS Compatibility

Windows 32bit:
Windows Vista, Windows 7, Windows 8, Windows 8.1,
Windows 10
Windows Server 2008
Windows 64bit:
Windows Vista , Windows 7, Windows 8, Windows 8.1,
Windows 10
Windows Server 2008/2008R2, Windows Server 2012/2012R2
*Windows RT(Windows 8 ARM version) is not supported
Macintosh
OS10.7.5 -OS10.10.x

Supported Mobile Systems

iOS
Android

Interface

Hi Speed USB Type: Built-in
USB 2.0 High-Speed Full Speed (12 Mbit/sec),
High Speed (480 Mbit/sec), Bulk transfer

Wireless LAN

Wi-Fi
IEEE802.11n
IEEE802.11g
IEEE802.11b

Ethernet

Type Built-in:
IEEE 802.3 10base-T
IEEE 802.3u 100base-TX
Auto-Negotiation

Smart device & Cloud apps

Canon PRINT app (iOS or Android)
Pro Gallery Print app (iPad only)
PIXMA Cloud Link
Apple AirPrint
Google Cloud Print

Camera direct

Wi-Fi PictBridge

Software

Print Studio Pro, Quick Utility Toolbox, Media Configuration Tool,
Account Manager, Device Management Console

PRINT HEAD



Type

LUCIA PRO Ink Tanks:
PFI-1000
MBK/PBK/C/M/Y/PC/PM/GY/PGY/R/B/C

Page yield (4 x 6” PT-101) [8]

Number of 10cm x 15cm photos
Matte Black (MBK): 5490 photos*
Photo Black (PBK): 2205 photos*
Grey (GY): 1465 photos*
Photo Grey (PGY): 3165 photos*
Photo Cyan (PC): 5140 photos*
Cyan (C): 5025 photos*
Photo Magenta (PM): 3755 photos
Magenta (M): 5885 photos*
Yellow (Y): 3365 photos
Red (R): 5355 photos*
Blue (B): 4875 photos*
Chroma Optimizer (CO): 680 photos
* Estimated Supplemental Yield

Page yield (A2 PT-101)

Number of A2 colour photos
Matte Black (MBK): 1600 photos*
Photo Black (PBK): 256 photos*
Grey (GY): 106 photos*
Photo Grey (PGY): 270 photos*
Photo Cyan (PC): 600 photos*
Cyan (C): 675 photos*
Photo Magenta (PM): 374 photos*
Magenta (M): 965 photos*
Yellow (Y): 329 photos
Red (R): 935 photos*
Blue (B): 545 photos*
Chroma Optimizer (CO): 97 photos*
* Estimated Supplemental Yield

MEDIA HANDLING



Media Feeding

Rear tray / Manual feed slot

Media Type

Plain Paper,
Photo Paper Plus Glossy II,
Photo Paper Pro Platinum,
Photo Paper Pro Luster,
Photo Paper Plus Semi-Gloss,
Photo Paper Pro Premium Matte,
Matte Photo Paper,
Other Fine Art, Canvas and Glossy Photo Papers

Media size

A5, A4, A3, A3+, A2, B5, B4, B3,
4 x 6“ , 5 x 7“ , 8 x 10“ , 10 x 12“ , 14 x 17“ , 17 x 22“ , LTR, LGL, LDR

Media Thickness

Rear tray: Plain paper 64-105g/m2, Canon specialty paper Max.
300 g/m2,
Rear tray thickness: 0.1-0.3 mm
Manual feed slot: Canon specialty paper Max. 400 g/m2,
Manual feed thickness: 0.1-0.7 mm

Media Width

Rear tray: 89-432 mm,
Manual feed slot: 203.2-432 mm

Minimal Printable Paper Length

Rear tray: 127 mm
Manual feed slot: 254 mm

Maximum Printable Paper Length

594 mm

Margins (Top, Bottoms, Sides)

Recommended – Top margin: 57 mm, Bottom margin: 55 mm,
Left / Right: 3.4 mm
(LTR / LGL – Left margin: 6.4 mm, Right margin: 6.3 mm)
Printable area – Top margin 3 mm, Bottom margin 5 mm, Left /
Right margin 3.4 mm
(LTR / LGL – Left margin: 6.4 mm, Right margin: 6.3 mm)

Media Width for Borderless Printing

A4, A3, A3+, A2, 4 x 6”, 5 x 7”, 8 x 10”, 10 x 12”, 14 x 17”,
17 x 22”, LTR

WHAT’S IN THE BOX?

imagePROGRAF PRO-1000
Power Cord
Print Head
12 individual ink tanks
Sample Media: LU-101 A3 x 5 Sheets
Head alignment media: MP-101 A4 x 2 Sheets
Setup CD-ROM (CD only for Windows – Mac drivers available
online*)
Starter guide
*All drivers and mobile apps are available online at http://www.canon.com/ijsetup

CONSUMABLES



Ink Tank

PFI-1000 MBK/PBK/C/M/Y/PC/PM/GY/PGY/R/B/CO (80 ml)

Maintenance Cartridge

MC-20

DISCLAIMER





[1] Ink droplets can be placed with a pitch of 1/2400 inch at minimum.
[2]Print speed is based on the default setting using ISO/JIS-SCID N5 and does not take into account
data processing time on host computer. Print speed may vary depending on system configuration,
interface, software, document complexity, print mode, page coverage, type of paper used etc.
[3]When printing ISO/JIS-SCID N2 pattern on A4 size Photo Paper Pro Platinum (PT-101) using default
settings.
[4] The performance of the printer may be reduced under certain temperature and humidity conditions.
[5] When printing ISO/JIS-SCID N2 pattern on Photo Paper Pro Platinum using default settings.
[6] Acoustic Noise is measured based on ISO7779 standard.
[7] Minimum system requirements is according to that of OS and application software used.
[8] Declared yield value in accordance with ISO/IEC 29103. Values obtained by continuous printing.

Specifications are subject to change without notice.
