Arizona 6100 High Flow Vacuum
Arizona 6100 High Flow Vacuum

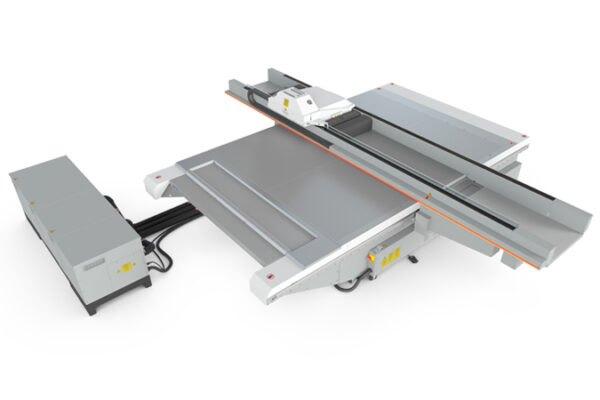

Canon Arizona 6100 HFV Series

Brand:  Canon

Series:  6100 High Flow Vacuum

Model: Arizona 6100 High Flow Vacuum

Type: UV Flatbed Printer

Click Here to View the Brochure

Call for price




The Arizona 6100 HFV Series printers, with the innovative High Flow Vacuum, easily pulls down porous, warped substrates in the blink of an eye. Now you can successfully create challenging packaging, display, and interior décor applications like never before. Click here to watch the Arizona 6100 HFV Series demo.

Arizona 6100 High Flow Vacuum Series Corrugated & Plywood Printing

Printing on corrugate boards and plywood panels, which are never flat, is challenging. You’ve had two options: tape down boards to avoid damaging print heads or raise the carriage height and sacrifice print quality.


Key Arizona 6100 UV High Vacuum Series printer features include:

  • High Flow Vacuum producing up to 15 times the airflow of existing systems.
  • New table with 250,000 air holes for maximum hold down.
  • A productive pneumatic pin registration system for quickly and accurately loading boards.
  • Oversized 8.1 × 10.5 foot maximum print area.
  • Print speeds of up to 1,668 sq. ft. or 33 4′ x 8′ boards per hour with high print quality and density.
  • Automated Printhead Maintenance System for “hands-free” cleaning of printheads
  • VariaDot technology featuring award winning image quality, which is capable of producing sharp image detail and dense uniform solid colors.
  • Built-in White Ink printing with the Arizona 6170 XTS.
  • Introducing light magenta and light cyan inks to provide optimized print quality at high speeds.

The Arizona 6100 High Flow Vacuum series was developed to streamline production of:

  • Short Run Packaging
  • Package Prototyping
  • Temporary POP Displays
  • Printed Plywood Panels

Print shops looking to increase their revenue with highly productive and versatile UV large format flatbed printers will find a wide range of printer models in the Arizona® Series. Canon’s flatbed printers have earned over 50 industry awards to date from organizations throughout the world and counting, including the 2019 SGIA Product of the Year and the latest 2018 Digital Output top product award validating the quality and innovation built into every Arizona Series printer.

For Inks & Supplies, Click here.

Additional information

Weight 100 lbs




Rigid Media Size

98.4" x 126" (2.5m x 3.2m)

Rigid Media Thickness

1.0" (25.4mm)

VariaDot Printing Technology

6 to 42 picoliter droplets, 636 nozzles, one printhead/channel single row design

Express Print Speed

1668ft 2/hr

Ink Channels

6160 Series – 6 ink channels (C,Lc,M,Lm,Y,K ) upgradeable to 6170 for 7 channels (C,Lc,M,Lm,Y,K & Wh)

6170 Series – 7 ink channels (C,Lc,M,Lm,Y,K & Wh)
