Oce PlotWave 500

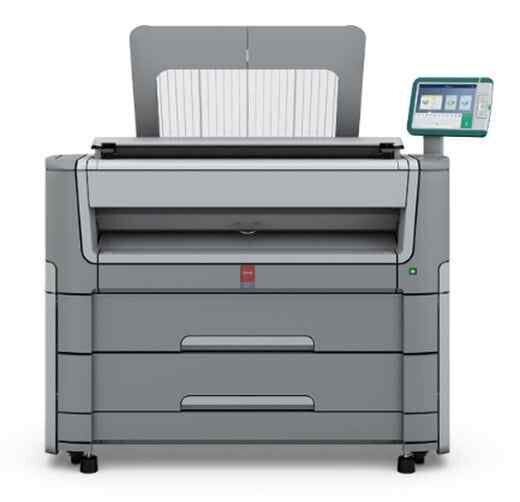

Océ PlotWave 500


Océ PlotWave 500

Brand: Océ

Series: PlotWave

Model: 500

Type: Toner

Click Here to View the Brochure

Call for price



Océ PlotWave 500 printing system

Cloud integrated, advanced large format technical document management

Take control of document costs and project workflows with the instant productivity of the Océ PlotWave 500 large format printer, copier, and scanner. Printing and collating documents inefficiently can be costly and eat up the valuable time of knowledge workers. With this black & white, large format workhorse in your office, you can easily print an amazing ten D-size/A1 prints per minute, with virtually no warm-up delay. That’s a whopping 600 sheets an hour — the power you need to print faster, share faster, and finish projects faster. Just like the Océ PlotWave 340/360 printing system, walk-up users interact with this printer like a smartphone/tablet thanks to the 10.4″ color LCD touchscreen interface with multi-touch. For Océ PlotWave 500 Full Demo Click Here.

That means CAD professionals are already familiar with the Océ ClearConnect user interface from the onset. And true to its name, Océ ClearConnect makes the right connections to get the job done. Print on the way to your next meeting or from a job site — to keep work moving even when you can’t get to the printer. Many of today’s architectural, engineering, and construction firms across the globe have been built using Océ technical document systems. CAD professionals in a variety of technical industries can react faster and work more efficiently thanks to our productive, innovative, and easy-to-use printing systems, making the Océ PlotWave 500 printer an effective solution for today’s technical document workflow challenges.

Features :

  • The multi-functional Océ PlotWave 500 is a monochrome printer with optional colour scanner. It offers instant printing, secure cloud connectivity, energy efficiency and smart multi-touch panel operation within a single footprint.

Benefits :

  • 2 to 4 rolls
  • Reliable 600 x 1200 dpi B&W printing with Océ Pico-Printing technology
  • First print-out in 30 seconds with Océ Radiant Fusing technology
  • Up to 10 A1 plots per minute
  • Flexible workflow with user-friendly and smart ClearConnect panel
  • Océ Image Logic optimising imperfect originals to perfect scans and copies
  • Top Delivery Tray collates up to 100 A0/E-size plots neatly and in order with air-separation technology
  • Secure cloud connectivity
  • Sleek, compact and durable hardware design
  • Energy efficient with low ozone, heat and noise emission; which makes it perfect for office usage

Memory :

  • 4 GB DDR3 (standard)

Hard disk :

  • 500 GB, 7200 rpm

For Toner Supply Click Here.

Additional information

Weight 100 lbs





System Type




Imaging technology

Electrophotography (LED) with Organic photoconductor (OPC), Océ Radiant Fusing Technology with instant warm
up, clean toner refill system, virtually no ozone emission

Fusing technology

Océ Radiant Fusing technology

Toner/ type

Océ black toner: 450 grams per bottle

Speed (print and copy):

10 D-size/A1 ppm, 5 E-size/A0 ppm

First copy output time from standby mode (D-size/A1)

19 seconds

Size main engine (W× D × H)

Compact design: 60.1" × 31.6" × 58.9" (1527 × 803 × 1495 mm) (including top delivery tray)

Weight main engine

585 lbs. (265 kg.)



Media capacity

2 or 4 rolls (i.e. 1 or 2 media drawers)

Paper cutting

Cutters included in drawers for fast and easy media switching

Maximum paper capacity

2 roll: 3,900 sq. ft. (365 m2)
4 roll: 7,800 sq. ft. (730 m2)

Media sizes

ARCH: B, C, D, E, E1, 30”, 21”, 15” ANSI: B, C, D, E ISO: A3, A2, A1, A0, B2, B1, B2_700, B1_700

Media weight (min. / max.)

16 – 28 lb. ( 60 – 110 g/m2)

Roll width (min. / max.)

11" – 36" (279 – 914 mm)

Minimum printed length

11" (279 mm)

Maximum printed length

577' (176 meters)



Output delivery

Top (default): Top Delivery Tray (100 E-size/A0)
Rear (optional): rear output to Océ Delivery Tray, Océ 4312 FullFold, or Océ 2400 FanFold

Media Type (

Paper, Engineering Bond, Vellum, Recycled Bond, Tinted Bond, Film: Polyester 3.5 mil



Size (W× D × H)

11.8" × 8.7" × 1.6" (300 × 220 × 40 mm) Touch screen: 10.4" (diag.) Color LCD (264 mm diag.)


800 × 600 pixels

Number of colors

16.2 Million


Projective capacitive touch


Three hard buttons: [Wake-up], [Stop, interrupt, abort], [Home]
Multi-touch functions: tap, double tap, pinch, swipe, flick, and spread

Interface design

IF design award: distinctive user interface and intuitive navigation and clearly defined levels of operation


View optimization: Tilt (-4 to +45 degrees) and turn (-45 to +180 degrees)
Status light (red, orange, green)
USB 2.0 interface with indication light




Dual-Core G540 @ 2.50GHz



Intel HD Graphics, 1GHz

Hard disk

500 gb, 7200 rpm


Ethernet 100 Mbits/s, 1 Gbit/s
TCP/IP: DHCP,IPv4, IPv6, https
Discovery: APIPA, WSD

Page description language

TIFF, JPEG, HPGL, HPGL2, DWF, C4, Calcomp 906/907/951, CALS, NIRS, NIFF, PS/PDF (optional)

Printing protocol

LPR, FTP, WebDav, WSD print

Back Channel Protocol

SNMP printer MIB, Océ Wave interface 1.2, WSD


E-shredding, IPSec, HTTPS, extended security protection for administrator, audit logging. User authentication on
local UI for FTP, SMB and WebDav. Configure HTTPS Certificates

Cloud support

Unlimited user and/or Administrator authenticated cloud support via WebDav and/or third party provider: e.g. Microsoft
SharePoint®, Dropbox®,,, Google® Drive®, Microsoft SkyDrive®, Amazon®, CloudSafe®, MyDisk®


Scaling: Scaling (scale-to-fit page, reduce when image too large to avoid clipping or to custom factor, scale page size
to standard size), Rotation, Shift (automatic or user defined), Adding/removing trailing/leading edge, Mirror, Black
intensity in poster mode, Print optimization (standard, lines/text, poster). Color Highlight and Dark Original.




Contact Image Sensor (CIS) Color scanner with Océ Image Logic technology

Scan resolution

600 × 600 dpi

Scan speed

Up to 47.9 ft./min (14.6 m/min) Black & White scanning
Up to 31.8 ft./min (9.7 m/min) Copying
Up to 15.7 ft./min (4.8 m/min) Color scanning

Scan formats

TIFF, PDF, PDF/A, JPEG, CALS, multi-page PDF, multi-page PDF/A and multi-page TIFF

Scan destination

Local USB flash drive, FTP, SMB, Controller, mobile device via Océ Mobile WebTools, WebDav Cloud

Scan naming

Preset naming with auto numbering for productive scanning or file name on the Océ ClearConnect user panel keyboard

Original width (min. / max.)

8.2" – 36" (208 – 914 mm)

Original length (min. / max.)

8.2"– 52.5' (208 mm – 16 m)

Original thickness

Maximum 0.03" (0.8 mm) non-rigid documents


1:1, Scale to media size , Scale to standard format, Custom: 10 – 1000%

Preset modes

Lines & text, Lines & text draft, Folded lines & text, Photo, Colored, Dark original, Blueprint, Color Highlight

Size scanner (W× D × H)

43" × 12" × 5.5" (1,097 × 308 × 140 mm)

Weight scanner

46 lbs. (21 kg.)



Heat emission

Ready: 72 W, Active: 1.6 kW

Power requirements

90 – 240 V, 50/60 Hz

Power consumption

Sleep Mode: 1 W
Ready Mode: 88 W
Active Mode: 1.5 kW

Safety/EMC marks & environmental labels

CE, TUV GS, CETECOM, C-UL-US, Energy Star 2.0, FEMP

Sound power level

Standby and Sleep modes: less than 25 dB
Print mode: less than 55 dB

Ozone concentration

<0.001 mg/m3
(0.05% of permitted limit value)
