Oce PlotWave 450
Oce PlotWave 450
Oce PlotWave 450

Océ PlotWave 450

From: $5,000.00

From: $5,000.00

Océ PlotWave 450

Brand: Océ

Series: PlotWave

Model Number: 450

Type: Toner

Click Here to View the Brochure

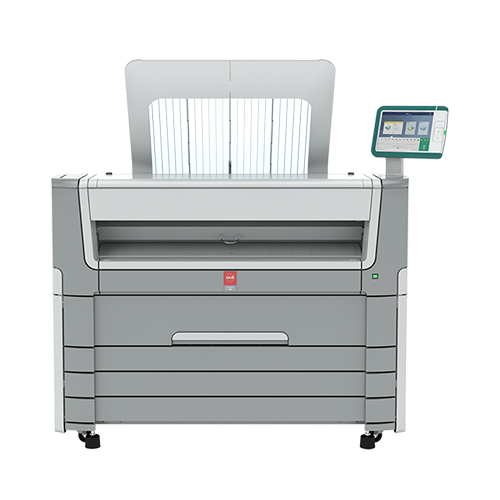

Océ PlotWave 450

Large Format Technical Document Management with Advanced Security

Designed for CAD professionals, the Océ PlotWave 450 printing systems address end-to-end technical document workflow. From print drivers and job submission software to neatly stacked and collated documents, you can depend on our solutions, developed to meet and exceed real-world needs for decentralized or centralized (printroom) environments with mid- to large sized CAD workgroups. Touch the new way of walk-up printing, copying, and scanning with the large ClearConnect color touchscreen interface.

Using the same multi-touch gestures as tablet computers and high-end smartphones, you can easily control the printer, copier, and scanner with your fingertips: tap, pinch, swipe, flick, spread, and more; zoom in on details of a drawing; print from and scan to your cloud of choice, USB flash drive, or network folder; configure Canon’s Smart Inbox and send print files and jobs to a project or personal folder. Then simply walk up and select your files or jobs you wish to print. Documents are output to the integrated Top Delivery Tray using air separation for neatly stacked and collated documents.

Core Technologies – Radiant Fusing Technology

An eco-friendly fusing method, providing instant-on with no warm-up time required. It consumes less energy and emits less noise when compared to conventional fusing. Work faster by minimizing waiting time. It enables quick printer availability even from sleep mode. Go from cold sleep to print in hand — in less than 30 seconds. Compared to a slow three minutes for conventional large format printers, Radiant Fusing technology can save up to an hour per day in printing delays. Reduce energy usage with ENERGY STAR®-recognized
Radiant Fusing technology. During the fusing process, the toner melts and is fused to the media via heat rising from a grid of wires, without distorting the image. With no conventional pressure rollers required, maintain a lower temperature. Since the system heats and cools instantly, there is no need for noisy fans, and the system runs “whisper quiet” in standby, ready, and sleep modes. Radiant Fusing technology results in sharper printed output while preventing resolution loss, dot size degradation, and line fuzziness as a result of the toner melting exactly where it is placed on the media.

Color Image Logic Technology

Color Image Logic technology was developed and patented with the objective that 99 percent of all originals should be copied and scanned with the right quality the first time without any operator intervention. This improves efficiency as the process of copying and scanning can be a very time-consuming task. Technical document originals, even if imperfect — including dark backgrounds, fold lines, wrinkles, or text — result in quality copies and scans the first time. Wanna know how Color image logic technology works Click Here.

Advanced Security Options

Removable Hard Drive
Removable Hard Drive Kit with option for additional hard drive to physically remove and lock away the system’s hard drive.

Access Management
Require users to authenticate themselves via the ClearConnect touchscreen interface or through a supported third-party smart card reader.

Disk Encryption
Windows BitLocker Drive Encryption provides data protection for the controller via a Trusted Platform Module (TPM) microchip. Both the TPM and the Windows BitLocker Drive Encryption functionality used for data encryption are FIPS 140-2 level 1 validated.

Features :

  • The new Oce PlotWave 450 is a very resilient and productive standalone multi-function system for workgroups needing to share securely, print complex document sets quickly, and produce wide format projects to professional quality.
  • Enjoy dependable, stress-free production
  • Exceptional results you’ll always be happy with
  • Peace of mind with secure, durable printing
  • Cost-efficiency is built-in
  • Be brilliantly efficient
  • Always be secure
  • Take care of the environment

Memory :

  • 4 GB DDR3 (standard)

Hard disk :

  • 500 GB, 7200rpm (standard)

For Toners & Supplies, Click Here.

Additional information

Weight 100 lbs




System Type

, ,


, ,



No Adobe PS/PDF, Adobe PS/PDF



2-roll (standard) or 4-roll printing system

Productive large format monochrome printer with ClearConnect multi-touch user panel

Stacking systems (standard)

Integrated Top Delivery Tray; Up to 100 sheets E-size/A0 capacity

ClearConnect multi-touch user interface (standard)

Consistent look and feel from every angle of your workflow, standard, including Smart Inbox,
Canon's SmartAccess, and Live Preview

Media switch (standard)

Fully automated media switch guides the printed documents to the Top Delivery Tray or back output
depending on the user application

ClearConnect Workflow software (standard)

Canon's Wide Format Printer Driver 2 for Microsoft Windows, Printer Driver for Adobe® PostScript®
3™ driver, Mobile WebTools for Apple® iOS, Google Android™ and BlackBerry®, Publisher Mobile for
iOS and Android, Publisher Express, Publisher Select 3

Productive scanning system (optional)

Canon's Scanner Express with Image Logic technology

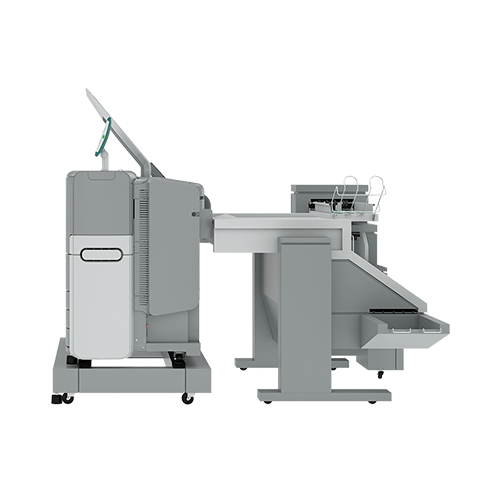

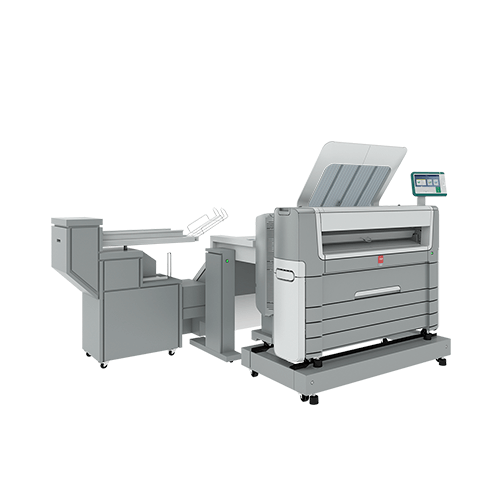

Folding systems (optional)

PlotWave folder, PlotWave folder connection kit, optional belt delivery unit.
PlotWave folder is fully-integrated (Level 3) with printer

Stacking systems (optional)

Delivery Tray provides an additional 150 sheets (E-size/A0) capacity.
Increases total stacking capacity from 100 (Top Delivery Tray) to 250 sheets

Media capacity upgrade (optional)

Four roll printer option (addition of second media drawer) to increase media capacity from
3,900 to 7,800 ft.²
(365 to 730 m²)

Workflow software (optional)

Canon's Direct Print Pro, Direct Print, Publisher Select 2, Adobe® PostScript 3™/PDF file interpreter,
Repro Desk, Account Center, View Station

Hardware (optional)

Four-roll printer, Canon's Scanner Express, removable hard disk, climate control, PlotWave folder and
PlotWave folder connection kit, Delivery Tray, TPM module (required with Disk Encryption option)

Starter kit includes

1 bottle toner (400 g), 1 bottle developer (1,750 g), 1 roll 36" 20 lb. bond paper (75 g/m²)



Fast print speed

• Print speed up to 8 ppm D-size/A1 (PlotWave 450 printer),
up to 10 ppm D-size/A1 (PlotWave 550 printer)
• One-click printing from USB
• One-click printing from Smart Inbox or last send job (SmartAccess)
• Instant start-up due to Radiant Fusing technology

Virtually Silent* in Standby and Sleep modes (*under 25 dB)

Océ Radiant Fusing technology eliminates noise

Accelerated first printout time from standby mode (D-size/A1)

16 seconds

Accelerated first copy out time from standby mode (D-size/A1)

19 seconds

Average first print outtime from Sleep mode (D-size/A1)

30 seconds (including one-click USB printing, file processing, top delivery

Imaging technology

Electrophotography (LED) with organic photoconductor (OPC); Radiant Fusing technology
with instant warm-up; Clean toner refill system; Virtually no ozone emission

Fusing technology

Radiant Fusing technology; instant warm-up


Canon black toner: 450g per bottle

Speed (print and copy)

PlotWave 450 printer: 8 D-size/A1 per minute, 4 E-size/A0 per minute
PlotWave 550 printer: 10 D-size/A1 per minute, 5 E-size/A0 per minute

Minimum line width (ISO/IEC 13660:2001E)

0.00236" (0.06 mm)

1:1 line accuracy

< 0.3 % (E-size)

Main engine size (W x D x H)

Compact design: 60.1" x 31.6" x 58.9" (1,527 x 803 x 1,495 mm), including Top Delivery Tray

Main engine weight (2-roll printer only

516 lb. (234 kg)

Media capacity

Two rolls (standard); option for four rolls; manual feed of cutsheet media



Media cutting

Cutters included in the media drawer for fast media switching

Maximum media capacity

Two rolls (650' L x 36" W): 3,900 ft²; four rolls (650' L x 36" W): 7,800 ft²

Media sizes

ARCH: B, C, D, E, E1, 30", 21", 15"
ANSI: B, C, D, E
ISO: A3, A2, A1, A0, B2, B1, B2_700, B1_700

Media weight

Bond: 16 – 28 lb. (60 – 110 g/m²); film: Polyester 3.5 mil

Minimum roll width

11" (279 mm)

Maximum roll width

36" (841 mm)

Supported roll widths

11", 12", 15", 17", 18", 21", 22", 24", 30", 34", 36" (297 mm, 420 mm, 500 mm, 594 mm,
700 mm, 707 mm, 841 mm)

Minimum printed length

11" (279 mm)

Maximum printed length

577' (176 m)

Media type

Paper: Engineering bond, vellum, recycled bond, tinted bond, Xtreme 27# bond
Film: Polyester 3.5 mil

Automatic media handling

• Automatic media selection (based on drawing size and finishing)
• Automatic optimization of media selection for productivity and media saving
• Automatic rotation and alignment for folding
• Automatic legend detection



Size (W x D x H)

11.8" x 8.7" x 1.6" (300 x 220 x 40 mm); Touch screen: 10.4" (264 mm) color LCD (diagonal)


800 x 600 pixels

Number of colors

16.2 million


Projective capacitive touch


Three hard buttons: [Wake-up], [Stop/interrupt/abort], [Home]
Multi-touch functions: tap, double tap, pinch, two-finger pinch, swipe, flick, and spread

Interface design

Distinctive user interface with intuitive navigation and clearly defined levels of operation


View optimization: Tilt (-4 to +45 degrees) and swivel (-45 to +180 degrees)
Status light (red, orange, green); USB 2.0 interface with indication light




Dual-Core G1620 @ 2.70 GHz


4 GB DDR3 (standard)


Intel® HD Graphics, 1 GHz

Hard disk

500 GB, 7200 rpm (standard)


Ethernet 100 Mbits/s, 1 Gbit/s
Discovery: APIPA, WS-Discovery, SNMPv3

Page description language

TIFF, JPEG, HPGL, HPGL2, DWF, C4, Calcomp 906/907/951, CALS, NIRS, NIFF, PS/PDF (optional)

Printing protocol

LPR, FTP, WebDav, WSD print

Backchannel protocol

SNMPv3, PlotWave interface, WS-Discovery


E-shredding, IPSec, IP filtering/Access Control Lists, HTTPS, SNMPv3, audit logging, AES256
Disk Encryption, 802.1x Authentication, network protocol enable/disable, LDAP integration, Active
Directory Integration (optional), User authentication on local ClearConnect user panel and via
Express WebTools (LDAP/Active Directory credentials, smart card) for scan/copy/print. Configure
HTTPS Certificates. Allow disabling TLS1.0 and 1.1 protocols (no response to network scan) and
enable TLS 1.2 with stronger cipher. Removable hard disk option, Optional FIPS 140-2 Certified
Trusted Platform Module (TPM) and Windows BitLocker-based hard disk encryption, hard disk
wipe (only with Disk Encryption), Configurable CA certificate, Disable Network Ports and Protocols,
Security Event Logging, Optional Single Sign-on (on device).

Cloud support

Unlimited user- and/or administrator-authenticated cloud support via WebDav and/or third-party
provider (e.g. Microsoft® SharePoint®, Dropbox®,,, Google Drive™, Microsoft®
OneDrive®, Amazon Cloud Drive®, Cloudsafe®, MyDisk®). The cloud user authentication can either be
preconfigured by the administrator or done by the user at the time of accessing the specific cloud.


Scaling (scale-to-fit page, reduce when image too large to avoid clipping or to custom factor, scale
page size to standard size); Rotation; Shift (automatic or user-defined); Adding/removing trailing/
leading edge; Mirror; Black intensity in poster mode; Print optimization (standard, lines/text, poster);
Color Highlight and Dark Original; Area to erase (area of interest).




Contact Image Sensor (CIS) color scanner with Image Logic technology

Scan resolution

600 x 600 dpi. Selectable resolutions: 100, 200, 300, 400, or 600 dpi

Scan speed

Monochrome: Up to 47.9 ft./min (14.6 m/min.)
Copying: Up to 31.8 ft./min (9.7 m/min.)
Color: Up to 15.7 ft./min (4.8 m/min.)

Scan formats

TIFF, PDF, PDF/A, JPEG, CALS, multi-page PDF, multipage PDF/A, and multi-page TIFF

Scan templates

Virtually unlimited number of scan templates (200) to standardize common scan settings
and destinations

Scan destination

Local USB flash drive, FTP, SMB, Smart Inbox on POWERsync Controller, optional local home folder
(LDAP), mobile device via Mobile WebTools, WebDav Cloud

Scan naming

Preset naming with auto-numbering for productive scanning or create file name on the ClearConnect
user panel keyboard

Original width

Minimum: 8.2'' (208 mm); Maximum: 36" (914 mm)

Original length

Minimum: 8.2" (208 mm); Maximum: 52.5' (16 m)

Original thickness

Maximum 0.03" (0.8 mm); non-rigid documents

Zoom (copy

1:1; Scale to media size; Scale to standard format; Custom: 10 – 1,000 %

Original type presets

Lines and text draft, lines and text standard, folded lines and text, photo, colored original, artwork,
map, dark original, blueprint

Scanner dimensions (W x D x H)

43" x 12" x 5.5" (1,097 x 308 x 140 mm

Scanner weight

55 lb. (25 kg
