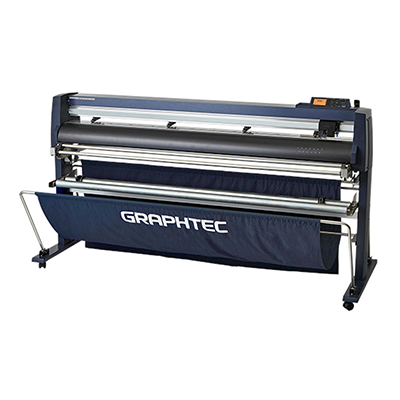

Graphtec FC9000 Series Cutting Plotter

Brand: Graphtec

Series: FC9000

System Type: Cutter

Click Here to View the Brochure

Call for price



Available in 4 sizes –

FC9000-75 – 762mm (30inch)

FC9000-100 –  1067mm (42inch)

FC9000-140 – 1372mm (Sdinch)

FC9000-160 – 1626mm (64inch)


Best in class ability

1485mm/s maximum cutting speed, 39.2m/s2 maximum acceleration, 5.88N (600gf) maximum cutting force. The FC9000 Series offers best-in-class productivity and abilities with a wider range of media from thick to thin.

Reliable long-length tracking (Automatic Take-up Roller)

It supports long-length, 15m (50ft) (Operated with Graphtec specified media and conditions.) and makes it possible to cut large signs/pops with stable paper carriage and high accurate cutting quality. In addition, if Automatic Take-up Roller as option is equipped to plotter, it becomes possible to automatically wind media and improve your work efficiency.

Automatic Take-up Roller(option)

The media is detected by the ultrasonic sensor and rolled up automatically.

  • Corresponding Models: FC9000-140/160
  • Guaranteed accuracy length: 20m(Under 1.2m per job)
  • Maximum diameter of winding roll: φ180mm
  • *Winding conditions:
    • End face of roll media and end face of paper tube should be aligned.
    • Width of roll media should be the same as width of the paper tube at the winding side.
      *It cannot be winded if media is folded or overlapped inside the basket.

Auto paneling

To prevent skew of long-length cutting, this function makes it possible to automatically split long-length jobs into smaller pages that are cut sequentially.
It shortens feed length and enables stable cutting. It is useful for cutting with higher accuracy or beyond the guaranteed long length.

Data output via USB flash memory without PC

When cutting data designed with Cutting Master 5 or Graphtec Studio 2 are saved to USB flash memory, it can be output directly to the cutting plotter by plugging in. This simplified workflow enables users to operate without a computer.
* The USB flash memory format only supports FAT32. Please note that NTFS and exFAT are not supported.

User-friendly control panel

3.7inch LCD display and
easy-to-use control panel supports 10 languages.

Improved ARMS for high precision cutting (ARMS 8.0)

The Advanced Registration Mark Sensing system delivers precise Print & Cut results by using sensors to detect registration marks and perform axis alignment. Countless efficiency boosting features improve productivity for print & cut applications such as stickers and decals.

Data Link Function

By reading the Graphtec original Barcode, FC9000 automatically detects its linked data from PC or USB flash memory. This function is available regardless of which printer or RIP software is used.
* The USB flash memory format only supports FAT32. Please note that NTFS and exFAT are not supported.

Continuous Cut
Barcode data management allows cutting different data sequentially by detecting the “Start Mark” of the new Barcode. Sequential Print & Cut process with roll-media is now available.

Supports colored marks / specialty media

A wide variety of media types including holographic paper and reflective sheets are now compatible due to improvements of the ARMS sensor algorithm.
* Sensor may not be able to read certain combinations of specialty media and colored marks.

Supports Adobe Illustrator “Crop Marks”

Using the plug-in software Cutting Master 5, Adobe Illustrator crop marks will be available.

Expanded Cutting Area

The expanded cutting area to include objects outside of the area enclosed by registration marks. Production efficiency is enhanced by reducing media waste.

Segment Area Compensation (XY)

This function has been implemented in addition to the current X-axis Direction Segment Area Compensation. Middle mark is now available not only for X but also Y-axis alignment.

Additional information

Weight 100 lbs
Reposition Accuracy

+/- 0.01mm

Laser Type


Laser Tube Power


Motor Type

Step motor featuring high speed, high precision and great stability for X and Y axis movement

Cutting Area (Approx.)

51″ x 35″ (1,300 x 900 mm)

Minimum Letter Size

0.04″ (1 mm)

Max Power Consumption



AC 220V 60hz

Engraving Speed

Up to 23″/s (600 mm/s)

Speed Control

Adjustable from 0 – 100%

Maximum Laser Head Height Adjustment

Up to 11.81” (300 mm)

Supported Formats

.plt, .dxf, .ai, AutoCad, CorelDraw

Maximum CuttingThickness

Acrylic – 1″ (25 mm), MDF – 1/2” (12 mm), PS – 3/16″ (5 mm)

Operational Temperature

Temperature 20ºC – 28ºC (68ºF – 82ºF)
Humidity 40% – 60%

Equipment Dimensions (Length x Width x Height)

78″ x 42″ x 54”
(2,000 x 1,080 x 1,390 mm)

Packaging Dimensions (Length x Width x Height)

86″ x 51″ x 72”
(2,200 x 1,300 x 1,850 mm)

Equipment Weight

992 lb (450Kg)
Packaging and Equipment 1,102 lb (500Kg)

Included Items

Cw5000 Chiller / Exhaust Fan / Air Pump/ Laserworks Software

Optional Items

Honey Comb Table / Rotary Engraving Adaptor


Additional Information

Item FC9000-75 FC9000-100 FC9000-140 FC9000-160
Configuration Grit rolling type
Drive method Digital servo drive
Max. cutting area (W x L) (*1) 762mm × 50m 1067mm × 50m 1372mm × 50m 1626mm × 50m
Cutting area of guaranteed accuracy (*1) 742mm × 15m 1047mm × 10m

762mm × 15m
1352mm × 10m

762mm × 15m
1607mm × 10m

762mm × 15m
Mountable media width (*2) Max. 920mm
(36.2 inch)
Max. 1224mm
(48.1 inch)
Max. 1529mm
(60.1 inch)
Max. 1850mm
(72.8 inch)
Mountable roll media diameter 76 to 200mm (160mm when the optional paper ange (OPH-A21) is installed)
Mountable roll media mass 12kg 16kg 20kg 24kg
Compatible take-up roll width 200 to 1372mm 200 to 1626mm
Compatible take-up roll mass 20kg
Maximum cross cut width 762mm 1067mm 1372mm 1626mm
Max. cutting speed 1485mm/s at 45° direction
Axial acceleration Max. 39.2m/s2 at 45° direction
Cutting force Max. 5.88N (600gf)
Minimum character size Approx. 5 mm alphanumeric (varies depending on character font and media)
Mechanical resolution 0.005mm
Programmable resolution GP-GL:0.1 / 0.05 / 0.025 / 0.01mm

HP-GL™ (*3):0.025mm
Repeatability (*1) Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction)
Number of push rollers 2 rollers 3 rollers 4 rollers (Max. 5 (option))
Mountable number of tools 1 tool (mountable 2 tools (option))
Blade types Supersteel
Pen types Oil-based ballpoint pen, Water-based fiber-tip pen
Display Graphic type LCD with back-light (240dots × 128dots), supports 10 languages
Interface USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX
Buffer memory 2MB
Command sets GP-GL / HP-GL™ (Set by command or auto-detect) (*3)
Supported software Graphtec Studio 2, Cutting Master 5, Windows Driver,

Graphtec Pro Studio (*6), Graphtec Studio, Cutting Master 4 (*6),
Power source 100 V to 240 V AC, 50 / 60 Hztd>
Power consumption Max. 120 W
Operating environment 10 to 35 ºC, 35 to 75 % R.H. (non-condensing)
Guaranteed accuracy environment 16 to 32 ºC, 35 to 70 % R.H. (non-condensing)
External dimensions (W × D × H)

* Includes stand and basket.

1360x1151x1232 mm

1665x1151x1232 mm

1970x1151x1232 mm

2224x1151x1232 mm
Weight (approx.) * Includes stand and basket. 49 kg 56 kg 64.0 kg (80.9kg with installed automatic take-up roller) 70.0 kg (88.5kg with installed automatic take-up roller)
Safety PSE, UL/cUL, CE mark
EMC VCCI Class A, FCC Class A, CE mark
