CS820dtfe

42K0042-1

SKU : 42K0012

Brand : Lexmark

Color Laser

Duplex (2-sided) Printing: Integrated Duplex

Click Here to View the Specs Sheet

Call For Price

SHARE
Share

Description

Details

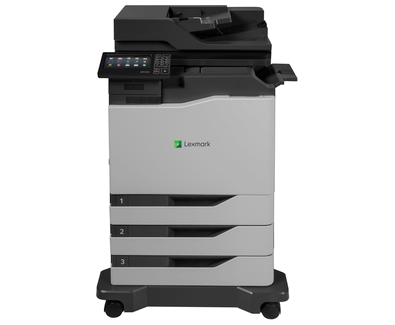

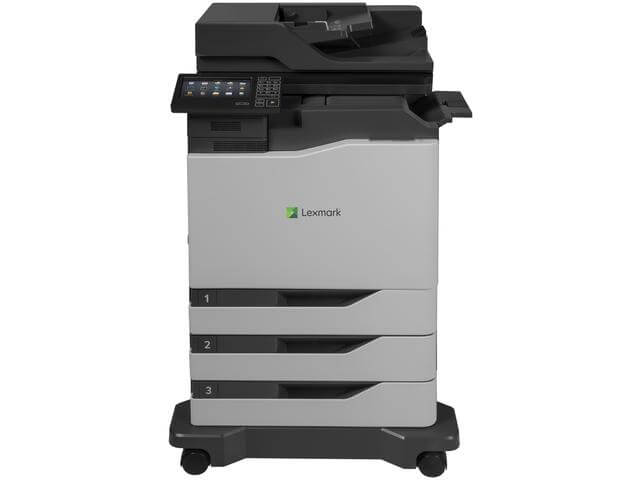

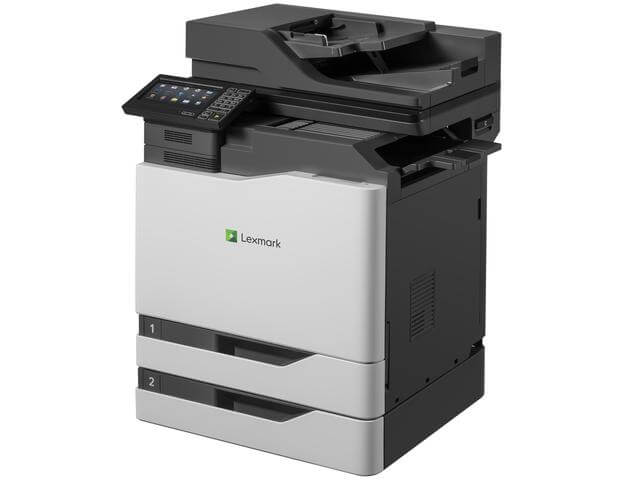

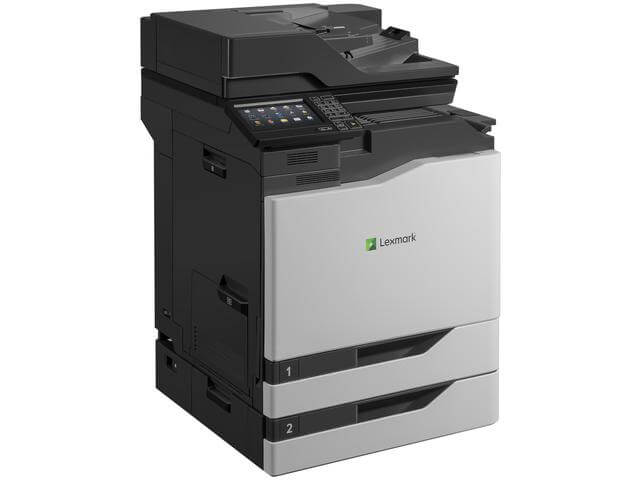

The Lexmark CX820dtfe workgroup color letter MFP prints up to 52 pages per minute and has business-class features like preinstalled software solutions and a staple finisher.

Multi-touch screen

The CX820 Series’ 7-inch eTask color touch screen features an ultra-smooth surface that can be activated by almost anything, including pens, fingertips or nails–without pressure or direct skin contact.

Top-tier scanning

It starts with 1200 dpi CCD-based scan quality for color and information accuracy, then adds automatic size sensing and ultrasonic multifeed detection to ensure that every page intended for archiving or integration into your digital workflow is successfully scanned.

Long-life components and high-volume toner

Minimizing maintenance reduces downtime, so the CX825 features photoconductor units that last up to 175,000 pages, and replacement toner rated at up to 33,000* black and up to 22,000* color pages. (* Average continuous black or continuous composite CMY declared cartridge yield up to this number of standard pages in accordance with ISO/IEC 19798.)

Production-class performance

A 1.6 GHz quad core processor with 2 GB of standard memory helps the CX825 Series handle complex jobs, while print speed of up to 55 ppm allows users in high-volume print environments to get fast color output. Even large color print jobs complete quickly so users are more productive.

Professional color

Professional color features include ultra-sharp 4800 Color Quality, PANTONE® calibration and spot color replacement for repeatable color accuracy even with critical corporate identity elements.

eSF flexibility with multi-touch screen

Lexmark-exclusive Embedded Solutions Framework (eSF) makes the MFP programmable to meet the needs of each customer and industry. And the CX825 Series’ 10-inch class e-Task color touch screen features an ultra-smooth surface that can be activated by almost anything, including pens, fingertips or nails–without pressure or direct skin contact.

Additional information

Function

Color Copying
Color Faxing
Color Printing
Color Scanning
Color Network Scanning

Workgroup Size

Large Workgroup

Display

Lexmark e-Task 7-inch (17.8 cm) color touch screen

Media Sizes Supported

A6, Oficio, 7 3/4 Envelope, 9 Envelope, JIS-B5, A4, Legal, A5, Letter, B5 Envelope, Index Card, 4 x 6", C4 Envelope, Statement, C5 Envelope, Executive, Universal, DL Envelope, Folio, 10 Envelope

Included Paper Handling

100-Sheet Multipurpose Feeder, 500-Sheet Output Bin, Integrated Duplex, 2 x 550-Sheet Tray, Inline Stapler, 550-Sheet Input

Standard Ports

Two Rear USB 2.0 Specification Hi-Speed Certified ports (Type A), Two Front USB 2.0 Specification Hi-Speed Certified port (Type A), Gigabit Ethernet (10/100/1000), USB 2.0 Specification Hi-Speed Certified (Type B), One Internal Card Slot

Size (in. - H x W x D)

44.8 x 25.54 x 23.15 in. (H x W x D)

Weight (lb.)

296.9 lb.

Packaged Size (in. - H x W x D)

54.33 x 30.0 x 32.68 in. (H x W x D)

Packaged Weight (lb.)

328.9 lb.

Copy Speed

Up to:
Black: 52 cpm (Letter)
Color: 52 cpm (Letter)

Time to First Copy

As fast as:Black: 6.5 seconds
Color: 7.5 seconds

Reduce / Enlarge Range

25 – 400 %

Modem Speed

ITU T.30, V.34 Half-Duplex, 33.6 Kbps

Fax Transmission Speed

< 3 seconds per page

Print Speed

Up to: Black: 52 pp1 (Letter)
Color: 52 ppm (Letter)

Print Speed Duplex

Up to:
Black: 52 spm (Letter)

Time to First Page

As fast as:Black: 7 seconds
Color: 7 seconds

Print Resolution

Black: 1200 x 1200 dpi, 4800 CQ (2400 x 600 dpi)
Color: 4800 CQ (2400 x 600 dpi), 1200 x 1200 dpi
““““““““`

Duplex

2-sided:
Integrated Duplex

Brand

Scanner Type / ADF Scan

Flatbed scanner with ADF
DADF (single pass Duplex)

Scan Area

8.5 x 14 inches (Maximum)

A4/Ltr Simplex Scan Speed

Up to:
Black: 57 / 60 sides per minute
Color: 57 / 60 sides per minute

A4/Ltr Duplex Scan Speed

Up to:
Black: 114 / 120 sides per minute
Color: 114 / 120 sides per minute

Scan Technology / Optical Scanning Resolution

CCD, 1200 X 600 ppi

Scan File Formats

Send as:
TIFF, Highly compressed PDF (1GB RAM and hard disk required), Archival PDF (A-1a, A-1b), Secure PDF, PDF, JPEG, JPG, Searchable PDF

Scan Destinations

e-mail, Lexmark Document Solutions Suite (LDSS), USB or Network connected computer, USB Flash drive, FTP

ADF

150-Sheet Automatic Document Feeder

ADF Paper Input Capacity / ADF Paper Output Capacity

Up to: 150 pages 20 lb or 75 gsm bond
Up to: 150 pages 20 lb or 75 gsm bond

Media Types Supported

Vinyl Labels, Labels, Banner Paper, Card Stock, Plain Paper, Polyester Labels, Dual Web Labels, Envelopes, Refer to the Paper & Specialty Media Guide

Finishing Option

Standard

Number of Paper Inputs

Standard: 2
Maximum: 6

Paper Input Capacity

Standard: 1750 pages 20 lb or 75 gsm bond
Maximum: 4500 pages 20 lb or 75 gsm bond
1750 pages 20 lb or 75 gsm bond

Paper Output Capacity

Up to:
Standard: 300 pages 20 lb or 75 gsm bond
Maximum: 300 pages 20 lb or 75 gsm bond

Paper Weight Range Supported

16 – 47 lb. (Standard Tray)
16 – 47 lb. (Multipurpose Feeder)

Integrated Tray Card Stock Upper limit

Cover – 300 gsm (110 lb) (grain short)
Index Bristol – 300 gsm (166 lb) (grain short)
Tag – 300 gsm (184 lb) (grain short)

Finishing Functions

Offset stacking, Stapling, Hole punching

Optional Paper Handling

2200-Sheet Tray, 550-Sheet Tray

Maximum Monthly Duty Cycle

Up to:
200000 pages per month

Size

in. – H x W x D:
Trays Extended: not define in.

Laser Cartridge Yields

up to:
22,000-page Color (CMY) Extra High Yield Cartridges
17,000-page Color (CMY) High Yield Cartridges
33,000-page Black Extra High Yield Cartridge
8,000-page Black and Color (CMYK) Cartridges

Developer Unit(s) Estimated Yield

Up to:
300000 pages, based on 3 average letter/A4-size pages per print job and ~ 5% coverage

Cartridge(s) Shipping with Product

8,000-page Black and Color (CMYK) Return Program Toner Cartridges

Replacement Cartridges:

Product functions only with replacement cartridges designed for use in a specific geographical region.

Processor Speed

Quad Core, 1.33 GHz

Memory

Standard: 2048 MB
Maximum: 4096 MB

Hard Disk

Included in configuration

Printer Languages

Standard:
PCL 5c Emulation, PCL 6 Emulation, Personal Printer Data Stream (PPDS), PostScript 3 Emulation, PDF 1.7 emulation, Direct Image, AirPrint™

Fonts and Symbol Sets

2 PCL bitmap fonts, 15 PPDS bitmap fonts, OCR-A, OCR-B scalable PCL 5e fonts, For more information, refer to the Technical Reference., 165 scalable PostScript fonts, 84 scalable PCL fonts, 3 of 9 scalable PCL 5e fonts in Narrow, Regular and Wide, 39 scalable PPDS fonts

Touch Screen Display

Yes

Direct USB

Yes

Ethernet Network

Yes

Wireless

Wireless Option

Network Protocol Support

TCP/IP IPv6, TCP/IP IPv4, TCP, UDP

Network Printing Methods

LPR/LPD, Direct IP (Port 9100), Pull Printing, Microsoft Web Services WSD, Telnet, Secure IP (Port 96xx), FTP, TFTP, Enhanced IP (Port 9400), ThinPrint .print integration, IPP 1.0, 1.1, 2.0 (Internet Printing Protocol)

Network Management Protocols

DHCP, APIPA (AutoIP), BOOTP, RARP, mDNS, IGMP, Bonjour, WINS, DDNS, SNMPv3, SNMPv1, SNMPv2c, Telnet, NTP, ICMP, HTTP, DNS, ARP, HTTPs (SSL/TLS), Finger

Network Security

IPSec, SNMPv3, 802.1x Authentication: MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS

Optional Network Ports

Marknet N8370 WiFi Option

Limited Warranty

See Statement of Limited Warranty:
1-Year Onsite Service, Next Business Day

In the Box

Power Cord(s)
Software and Documentation CD
Includes 2 of the 550-sheet trays, the inline Staple Finisher and the caster base

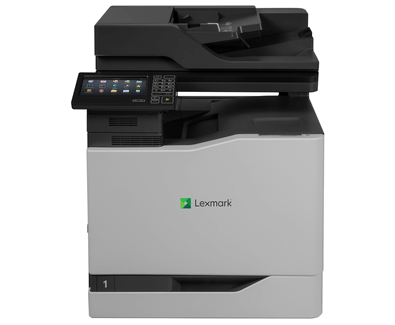

Lexmark CX820de colour laser multifunction printer with hard disk
Up to 175,000 pages photoconductor and up to 300,000 pages developer unit
Up to 8,000-page black, cyan, magenta, yellow toner cartridges
Statement of limited warranty / guarantee
Setup Guides (network and local attachment)
Lexmark Cartridge Collection Program information
