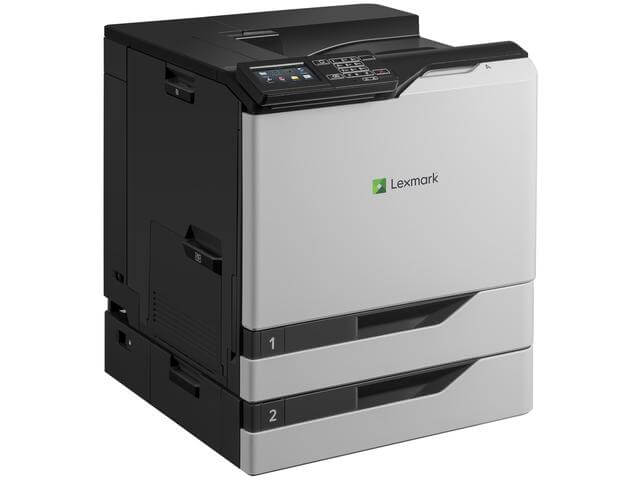

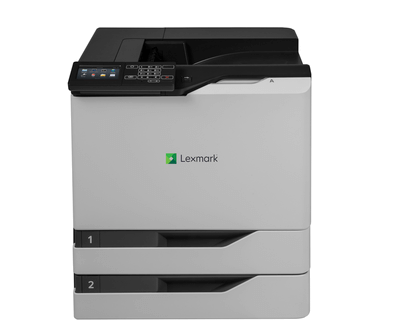

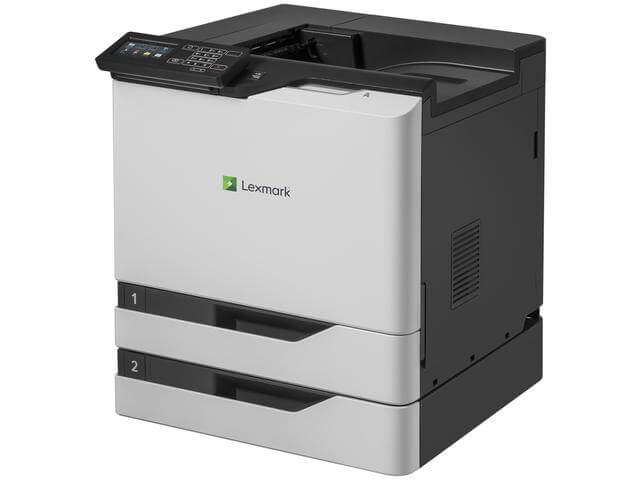

CS820dte

21K0150

SKU : 21K0150

Brand : Lexmark

Color Laser

Duplex (2-sided) Printing: Integrated Duplex

Click Here to View the Specs Sheet

Call For Price

SHARE
Share

Description

Details

The Lexmark CS820dte color printer brings production-level performance and quality to the office, with the most advanced imaging technology available and standard input capacity of up to 1200 pages.

Multi-touch screen

The CS820 Series’ 4.3-inch color touch screen features an ultra-smooth surface that can be activated by almost anything, including pens, fingertips or nails–without pressure or direct skin contact.

Environmental responsibility

Save money, paper, and energy with efficient power management, automatic ColorSaver toner usage reduction, default duplex printing, and low per-page carbon footprint.

Quad core power

A 1.33 GHz quad core processor with 1 GB of standard memory gives the CS820 Series a powerful print controller.

Professional color

Professional color features include ultra-sharp 4800 Color Quality, PANTONE® calibration and spot color replacement for repeatable color accuracy even with critical corporate identity elements.

eSF flexibility

Lexmark-exclusive Embedded Solutions Framework (eSF) makes the printer programmable to meet the needs of each customer and industry. Several software solutions are included, and more can be added.

Advanced media handling

Expand your output capabilities with standard input capacity of up to 1200 pages (expandable to 4500), an optional inline staple finisher, and the broadest media weight range possible–from tissue-thin paper to thick card stock.

Additional information

Function

Color Printing

Workgroup Size

Large Workgroup

Display

Lexmark e-Task 4.3-inch (10.9 cm) color touch screen

Media Sizes Supported

A6, Oficio, 7 3/4 Envelope, 9 Envelope, JIS-B5, A4, Legal, A5, Letter, B5 Envelope, Index Card, 4 x 6", C4 Envelope, Statement, C5 Envelope, Executive, Universal, DL Envelope, Folio, 10 Envelope

Included Paper Handling

100-Sheet Multipurpose Feeder, 500-Sheet Output Bin, Integrated Duplex, 550-Sheet Tray, 550-Sheet Input

Standard Ports

Two Rear USB 2.0 Specification Hi-Speed Certified ports (Type A), Gigabit Ethernet (10/100/1000), Front USB 2.0 Specification Hi-Speed Certified port (Type A), USB 2.0 Specification Hi-Speed Certified (Type B), One Internal Card Slot

Size (in. - H x W x D)

25.8 x 22 x 20.6 in. (H x W x D)

Weight (lb.)

158 lb.

Packaged Size (in. - H x W x D)

41.54 x 27.56 x 29. 92 in.(H x W x D)

Packaged Weight (lb.)

194.5 lb.

Print Speed

Up to:Black: 60 ppm (Letter)
Color: 60 ppm (Letter)

Print Speed Duplex

Up to:Black: 60 spm (Letter)

Time to First Page

As fast as:Black: 7 seconds
Color: 7 seconds

Print Resolution

Black: 1200 x 1200 dpi, 4800 CQ (2400 x 600 dpi)
Color: 4800 CQ (2400 x 600 dpi), 1200 x 1200 dpi

Duplex

2-sided:Integrated Duplex

Brand

Media Types Supported

Vinyl Labels, Labels, Card Stock, Plain Paper, Polyester Labels, Dual Web Labels, Envelopes, Refer to the Paper & Specialty Media Guide

Finishing Option

Yes

Number of Paper Inputs

Standard: 3
Maximum: 6

Paper Input Capacity

Standard: 1200 pages 20 lb or 75 gsm bond
Maximum: 4500 pages 20 lb or 75 gsm bond
1200 pages 20 lb or 75 gsm bond

Paper Output Capacity

Up to:
Standard: 500 pages 20 lb or 75 gsm bond
Maximum: 500 pages 20 lb or 75 gsm bond

Paper Weight Range Supported

16 – 47 lb. (Standard Tray)
16 – 47 lb. (Multipurpose Feeder)

Integrated Tray Card Stock Upper limit

Cover – 300 gsm (110 lb) (grain short)
Index Bristol – 300 gsm (166 lb) (grain short)
Tag – 300 gsm (184 lb) (grain short)

Finishing Functions

Offset stacking, Stapling

Optional Paper Handling

Inline Stapler, 2200-Sheet Tray, 550-Sheet Tray

Maximum Monthly Duty Cycle

Up to: 200000 pages per month

Size

in. – H x W x D:
Trays Extended: not define in.

Laser Cartridge Yields

up to:
22,000-page Color (CMY) Extra High Yield Cartridges
33,000-page Black Extra High Yield Cartridge
8,000-page Black and Color (CMYK) Cartridges

Developer Unit(s) Estimated Yield

Up to:
300000 pages, based on 3 average letter/A4-size pages per print job and ~ 5% coverage

Cartridge(s) Shipping with Product

8,0004-page Black and Colour (CMYK) Return Program Toner Cartridges

Replacement Cartridges:

Product functions only with replacement cartridges designed for use in a specific geographical region.

Processor Speed

Quad Core 1.33 GHz

Memory

Standard: 1024 MB
Maximum: 3072 MB

Hard Disk

Option available

Printer Languages

Standard:PCL 5c Emulation, PCL 6 Emulation, Personal Printer Data Stream (PPDS), PostScript 3 Emulation, PDF 1.7 emulation, Direct Image, AirPrint™

Fonts and Symbol Sets

2 PCL bitmap fonts, 15 PPDS bitmap fonts, OCR-A, OCR-B scalable PCL 5e fonts, For more information, refer to the Technical Reference., 165 scalable PostScript fonts, 84 scalable PCL fonts, 3 of 9 scalable PCL 5e fonts in Narrow, Regular and Wide, 39 scalable PPDS fonts

Touch Screen Display

Yes

Direct USB

Yes

Ethernet Network

Yes

Wireless

Wireless Option

Network Protocol Support

TCP/IP IPv6, TCP/IP IPv4, TCP, UDP

Network Printing Methods

LPR/LPD, Direct IP (Port 9100), Pull Printing, Microsoft Web Services WSD, Telnet, Secure IP (Port 96xx), FTP, TFTP, Enhanced IP (Port 9400), ThinPrint .print integration, IPP 1.0, 1.1, 2.0 (Internet Printing Protocol)

Network Management Protocols

DHCP, APIPA (AutoIP), BOOTP, RARP, mDNS, IGMP, Bonjour, WINS, DDNS, SNMPv3, SNMPv1, SNMPv2c, Telnet, NTP, ICMP, HTTP, DNS, ARP, HTTPs (SSL/TLS), Finger

Network Security

IPSec, SNMPv3, 802.1x Authentication: MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS

Optional Network Ports

Marknet N8370 WiFi Option

Limited Warranty

See Statement of Limited Warranty:
1-Year Onsite Service, Next Business Day

In the Box

Includes 550-sheet tray
Lexmark CS820de colour laser printer
Up to 8,000-page black, cyan, magenta, yellow toner cartridges
Lexmark Cartridge Collection Program information
Statement of limited warranty / guarantee
Software and Documentation CD
Up to 175,000 pages photoconductor and up to 300,000 pages developer unit
Setup Guides (network and local attachment)
Power Cord(s)
