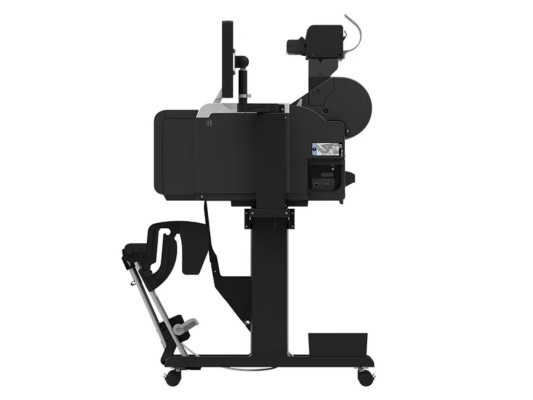

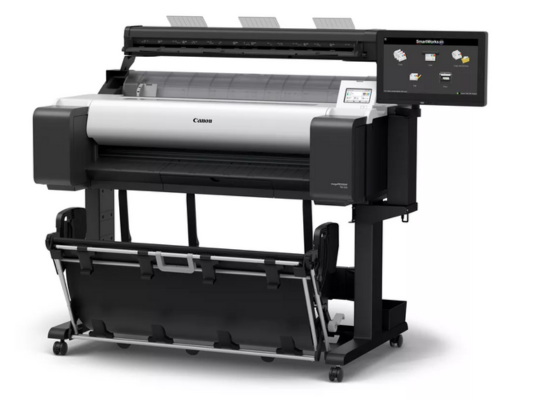

Canon imagePROGRAF TM-355 MFP Z36


Brand: Canon

Series: ImagePROGRAF

Model: TM-355 MFP Z36

Type: Ink

Click Here to View the Brochure

Call for price



Redefining what is possible with a large format printer, the TM Series printers offer enhanced productivity, efficiency, and usability over the previous generation of the imagePROGRAF TM & TA series printers.

The imagePROGRAF TM-355 MFP Z36 is great for low-volume users in small spaces printing posters, CAD documents, signage, and more with vivid color reproduction with newly formulated magenta ink & color calibration, along with more advanced and robust scanning capabilities. The newly designed imagePROGRAF TM Series has been built for more efficiency and comfort compared to previous models with its new flat-body design, full-frontal operation, and new 4.3” adjustable user interface screen.

The user interface screen displays the ink levels and sub-ink tank levels, automatic media detection indicator levels, and more setting prompts all on the home screen! Registered as EPEAT Gold—first in the imagePROGRAF TM Series— and as ENERGY STAR certified, this series is replacing EPS packaging materials with cardboard packaging. Plus, there is a host of creative workflow software included, such as, PosterArtist (Online and Lite versions), Free Layout Plus, Direct Print Plus, Accounting Manager, and more, to help with your everyday personal and business needs!

Additional information

Weight 100 lbs

Ink Type

Pigment: Matte Black (MBK), Cyan (C), Magenta (M), Yellow (Y), Black (BK)

Ink Tank

Shipped with printer: MBK (130ml), BK, C, M, Y (90ml)
Replacement: MBK, BK, C, Y: PFI-320 (300 ml)/PFI-120
(130ml) and M: PFI-321 (300 ml)/PFI-121 (130 ml)

Printer RAM

Standard Memory: 128 GB (2 GB Physical Memory)
Hard Disk: 500 GB

Media Feed

Roll Feed: One Roll, Top-loading, Front Output

Media Width

Roll Feed: 8”-36” (203.2 – 917mm)
Cut Sheet: 8”-36” (203.2 – 917mm)

Print Head


Printing Software Utilities

Accounting Manager, Device Management Console, Direct Print Plus, Free Layout
Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool,
PosterArtist, Canon PRINT Inkjet Selphy

Print Language

Printer: SGRaster, HP-GL/2, HP RTL, JPEG, PDF, CALS G4


• 2”/3” Roll Holder Set (RH2-35)
User-Replaceable Items
• Ink Tank (300 ml: PFI-320/PFI-321, 130ml:
• Print Head (PF-06)
• Maintenance Cartridge (MC-31)
• Cutter Blade (CT-08)

Scan Speed

• 24-bit Color @ 200 dpi: 3” (Per Second)
• 8-bit Grayscale and Monochrome @ 200 dpi:
13” (Per Second)

Scan Modes

• 16.7 Million Color RGB (24-bit)
• 256-level Grayscale (8-bit)
• Black-and-white (1-bit)

Maximum Resolution (Scanner)

1200 dpi

Maximum Scan Width


Maximum Media Width


Digital Imaging Technology (Scanner)

Contact Image Sensor (CIS) Technology
(SingleSensor Assembly)
• 24-bit RGB digital color image capture
• 16-bit grayscale image capture
• Panchromatic monochrome and black-and-white
• Bi-directional extra long-life LED light system for
optimum object illumination and instant-on
scanning capability

Included Software (Scanner)

SmartWorks MFP Scan-to-Copy/File/Email with Realtime Image
Viewer; supports TIFF, JPEG, TIFF G4, and Multi Page PDF

Dimensions (H x W x D) and Weight

Printer: 50.2” x 63.5” x 34.2” Approx. 185.1 lb
Scanner: 7” x 42” x 10” Approx 17.3lb

Package Dimensions (H x W x D) and Weight

Printer: 31.5” x 57.6” x 44.2” Approx. 249.1 lb

What’s In The TM-355 MFP Z36 Box

Printer: Printer, Stand with Flat Stacking Basket (for TM-355),
Starter Ink Tanks BK/C/M/Y (90ml) MBK (130ml), 1 Print Head, Maintenance Cartridge (Installed), 2” Roll Holder with 3”Adapters, Installation Guide, User Registration Card, One Year Printer Warranty Statement, Print Head Warranty Statement, Call Center Notice, Media Compatibility Flyer, PosterArtist Web Notice Flyer, Safety and Environmental Information, iWR Service Terms Leaflet, USB port (High Speed),
Power Cable and Screw, Gigabit Ethernet (Built-in)

Scanner: Z36 Scanner with Power Cord, USB 3.0 Cable (2 meter), 15.6” System Controller, 3:1 Trident Power Cord, Power Supply, Mount for Printer and System Controller, 2 Paper Edge Guides, Document Return Guides, Calibration Target, Assembly and Startup Guide
