Canon imagePROGRAF TM-305 MFP T36
Canon imagePROGRAF TM-305 MFP T36
Canon imagePROGRAF TM-305 MFP T36
Canon TM Series
Canon imagePROGRAF TM-305 MFP T36

Canon imagePROGRAF TM-305 MFP T36



Brand:  Canon

Series:  TM

Model: imagePROGRAF TM-305 MFP T36

Type: Ink

Click Here to View the Brochure

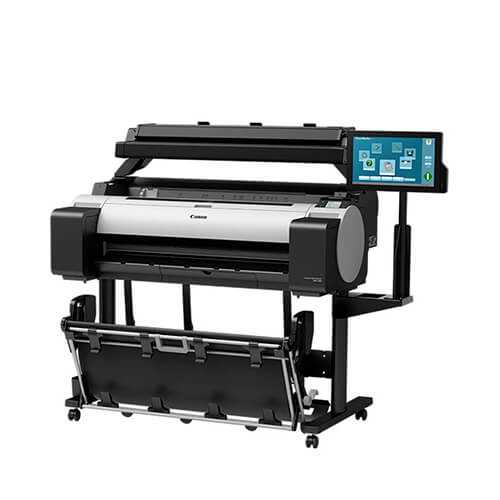

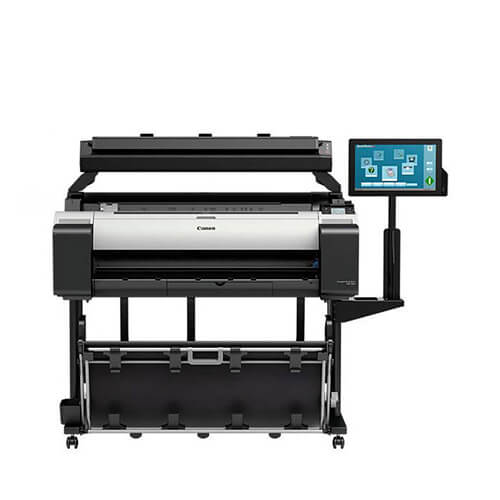

The 36-inch Canon imagePROGRAF TM-305 MFP T36 is a Scan-To-Copy/File/Share integrated solution from Canon that includes the TM-305 large format printer, T36 scanner and All-In-One computer with SmartWorks software. With increased scan speeds and advanced software capability compared to our predecessor large format printer models, this solution has everything needed to copy, scan, archive and share maps, drawings, renderings and posters. For demo, watch it here.

More than just the sum of its parts, it is the versatility of the product that helps make it stand out. This multi-component system gives the user the opportunity to be more productive by being able to print and scan at the same time. The open architecture of the computer can be used to load additional programs, among other things. The printer’s ability to print on a wide variety of media lends itself to uses in many departments and applications as well.

Features :

  • LUCIA TD Pigment Ink Set
  • Fast Printing
  • Flat Stacking Basket provides the capability to neatly stack up to twenty Arch D plain paper prints.
  • Direct USB Thumb Drive Printing
  • Wi-Fi Compatible
  • 500GB Hard Drive
  • The TM Series large-format printers come equipped with several security features designed to help prevent leaks of confidential information
  • Quiet Operation
  • The TM-305 features a 3″ color touchscreen operation panel making it easy to view printer information as well as perform simple operations.
  • A good fit for small offices, the compact TM-305 has a small footprint for a 36″ large format aqueous inkjet printer.
  • The 6-channel PF-06 Print Head is engineered to work with the printer’s high-speed carriage and high-frequency ink ejection to help facilitate fast printing.
  • L-COA Processor

The imagePROGRAF TM-305 MFP T36 includes:

  • TM-305 36-inch Printer with direct USB drive printing
  • T36 Scanner
  • 15.6″ All-In-One touchscreen computer
  • Computer Stand
  • Flat Stacking Basket

For Supplies, Click here.

Additional information

Weight 100 lbs


System Type



Ink Category


Printer Type

5-Color 36-inch Printer

Maximum Roll Print Length

Roll Feed – 59' (18 meters)

Print Languages


Physical Dimensions

42 x 51 x 35


approx.134 lbs (roll holder included, no inks, no print heads)

Print Head


Number of Nozzles

Matte Black: 5,120 Nozzles
Other Colors: 2,560 Nozzles per Color

Ink Tank

Shipped with Printer: MBK (130 ml), BK, C, M, Y (90 ml)
Replacement: PFI-120 (130 ml) or PFI-320 (300 ml)

Media Feed

Roll Feed: One Roll, Top-loading, Front Output

Media Width

Roll Feed: 8"-36" (203 mm –914 mm)
Cut Sheet: 8"-36" (203 mm –914 mm)

Ink Type

Pigment: Matte Black (MBK), Cyan (C), Magenta (M),
Yellow (Y), Black (BK)


Media Cutter

Durable Dual-Blade Rotary Cutter

Media Thickness

0.07 – 0.8 mm

Media Core Sizes

2" and 3" Core Adapters Included

Maximum Roll Outer Diameter

5.9" (150 mm)

Media Output

Flat Stacking Basket (Standard)

Printing Software Utilities

Accounting Manager, Apple AirPrint, Canon Print Service,
Device Management Console, Direct Print & Share, Free
Layout Plus, imagePROGRAF Printer Driver for Windows®/
Mac®, Media Configuration Tool, PosterArtist Lite for
Windows, Canon PRINT Inkjet Selphy, Easy-Photo
PrintEditor,*Optimized Driver for AutoCAD, Free Layout

Operating System

Windows 7 (32/64 bit), Windows 8.1 (32/64 bit), Windows 10
(32/64 bit), Windows Server 2008 R2, (32/64 bit), Windows
Server 2012 (64 bit), Windows Server 2012 R2 (64 bit), Windows
Server 2016 (64 bit), Macintosh OS X v10.10.5-v10.12x


Standard (Built-in): USB 2.0 Hi-Speed, 10/100/
1000Base-T/TX, Wireless LAN (IEEE 802.11 b/g /n)■,
Direct USB Thumb Drive

Power Supply

AC 100–240V (50-60 Hz)

Power Consumption

Maximum: 69 W or Less
Standby: 3.6 W or Less
Power Off: 0.3 W or Less (Executive Order Compliant)


Electrical Safety Regulations
C TUVus (U.S.A.), C TUVus (Canada)
Electromagnetic Interface Regulations
FCC Part 15B (U.S.A.), IC (Canada)
Radio Regulations
FCC Part 15C (U.S.A.), IC (Canada)
Environmental Certifications
ENERGY STAR® (Worldwide

Operational Environment

Temperature: 59° – 86° F (15° – 30° C)
Relative Humidity: 10 – 80% (Non Condensation)

Printer Dimensions (H x W x D) and Weight

(With Basket Opened)
41.7" x 51" x 34.9" Approx. 130 lb.

Package Dimensions (H x W x D) and Weight

With Stand, Basket, and Pallet
38" x 58" x 36" Approx. 231 lb.


• 2"/3" Roll Holder Set (RH2-35)
• PosterArtist
User-Replaceable Items
• Ink Tank (PFI-120/PFI-320)
• Print Head (PF-06)
• Maintenance Cartridge (MC-31)
• Cutter Blade (CT-08)

What’s In The Box

Printer, Basket, Stand, 2”/3” Core Media Spool
(Adapters Included), Power Cord, Tools and Screws, Print
Head, Maintenance Cartridge (Installed), 5 Ink Tanks
(130 ml: MBK, 90 ml: BK/C/M/Y), Sample Heavyweight
Coated Paper (A2/2 Sheets), Ethernet Card (built-in),
USB 2.0 High-speed Interface, USB Connection Sheet,
iWR Service Terms Leaflet, User Manual, Quick Setup
Guide, User Software CD for Windows (Printer Driver
Utilities), PosterArtist Lite CD, User Registration Card




Scan Speed
• 48-bit Full Color @ 200 dpi: 6" (per second)
• 16-bit Grayscale and Monochrome @ 200 dpi:
13" (per second)

Scan Modes
• 16.7-million Color RGB (24-bit)
• 256-level Grayscale (8-bit)
• Black and White (1-bit)

Color Space

Maximum Resolution
1200 dpi (optical)

Scan Accuracy▲
+/- 0.1% ; +/- 1 pixel

Maximum Scan Width

Maximum Media Width

Maximum Scan Length
315" (JPEG/PDF), 598" (TIFF)

Maximum Media Thickness
0.079" (2 mm)

Media Feed System
Adaptive CIS media focus management and media
guide mechanism; intuitive face-up, front-loading,
and front/rear-exit media path; automatic media
size detection with optical media sensors

Digital Imaging Technology
Contact Image Sensor (CIS) Technology
(SingleSensor Assembly)
• 48-bit RGB digital color image capture
• 16-bit grayscale image capture
• Panchromatic monochrome and black and white
• Bi-directional extra long-life LED light system for
optimum object illumination and instant-on
scanning capability

Digital Image Processing
• 2D Intelligent Adaptive Thresholding (IAT) (1-bit mode)
• Fixed Threshold Black and White (1-bit mode)

User Status and One-Touch Operation
Right-side mounted control panel; walk-up operation and
user selection of stop, forward and rewind, scan, copy, or
copy and archive

Included Software
SmartWorks MFP Scan-to-Copy/File/Email with Realtime Image Viewer; supports TIFF, JPEG, TIFF G4, and PDF

Operating System
Windows 10 Enterprise LTSB (x64)

Scanner Interface Kit
Superspeed USB 3.0 (PC Connector compatible with USB
2.0 and USB 3.0 sockets)

Operating Environments
10 – 35°C, 35-80% RH, Non-condensing

External Power Supply
100-240 VAC Autosensing +/- 10%, 50-60Hz

Scanner Power Consumption
• 53 Wh (scanning)
• 5 Wh (standby)


Scanner Dimensions (H x W x D)
6.3" x 43.6" x 14.4"

Scanner Weight
Approx. 33.1 lb.
MFP Package Dimensions (H x W x D) and Weight
With Stand, Pallet, and Scanner
57.3" x 63.3" x 36.0" Approx. 448 lb.

What’s In The Box?
• T36 Scanner with Power Cord, USB 3.0 Cable
• Power Supply
• Ethernet Cable
• Stand
• (2) Paper Edge Guides
• (3) Document Return Guides
• All-in-One Touch Screen Computer
• USB Drive with SmartWorks MFP Software,
Scanner User Manual, and Quick Start Guide
• Calibration Target
• T36 Scanner Quick Start Guide
