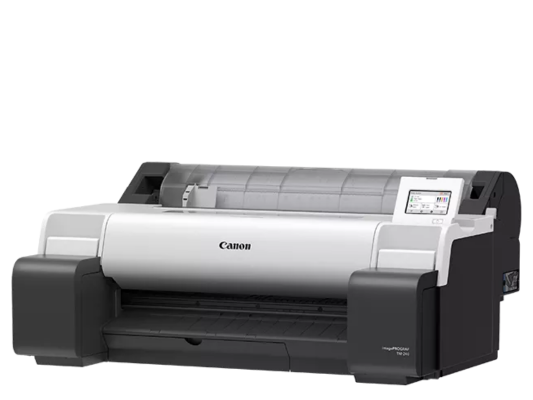

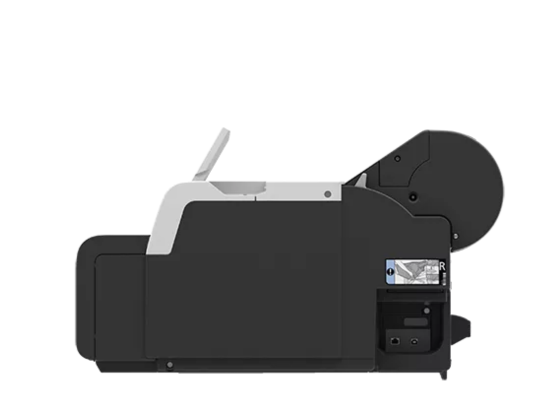

Canon imagePROGRAF TM-240


Brand: Canon

Series: ImagePROGRAF

Model:  TM-240

Type: Ink

Click Here to View the Brochure

Call for price



The imagePROGRAF TM-240 is great for entry-level users in small spaces printing posters, CAD documents, signage, and more with vivid color reproduction with newly formulated magenta ink & color calibration.

The newly designed imagePROGRAF TM Series has been built for more efficiency and comfort compared to previous models with its new flat-body design, full-frontal operation, and new 4.3” adjustable user interface screen. The user interface screen displays the ink levels and sub-ink tank levels, automatic media detection indicator levels, and more setting prompts all on the home screen!

Registered as EPEAT Gold—first in the imagePROGRAF TM Series— and as ENERGY STAR certified, this series is replacing EPS packaging materials with cardboard packaging. Plus, there is a host of creative workflow software included, such as, PosterArtist (Online and Lite versions), Free Layout Plus, Direct Print Plus, Accounting Manager, and more, to help with your everyday personal and business needs.



  • High-speed printing
  • The incorporation of newly formulated magenta ink
  • Color calibration
  • A new, functional body design


Key Highlights of the NEW imagePROGRAF TM Series

These printers are acked with advanced technology that’s also very user friendly. This allows for a shorter learning curve, so users can start printing right away.

  • New Magenta Ink – Vivid color reproduction, especially in red
  • Color Calibration – Consistent color, print to print and printer to printer
  • Speeds up to 3.2 D-Sized Prints/Minute (approximately) – Print more faster
  • 4.3-Inch Display Screen – Shows ink and media levels
  • Smart Media Handling – Detects media type, length, and width
  • Flat-Top Body Design – Easy paper loading
  • L-COA II Processer – Fast first-print-out time
  • Lm/Z36 Scanner Options (select models) – Add scanning capabilities
  • Registered EPEAT Gold and ENERGY STAR®  – Environmentally conscious
  • Workflow and Productivity Software – Easily create and manage print jobs

Additional information

Weight 100 lbs

Ink Type

Pigment: Matte Black (MBK), Cyan (C), Magenta (M), Yellow (Y), Black (BK)

Ink Tank

Shipped with printer: MBK (80 ml), BK, C, M, Y (55 ml)
Replacement: MBK, BK, C, Y: PFI-030 (55 ml) and M: PFI-031 (55 ml)

Printer RAM

2 GB

Media Feed

Roll Feed: One Roll, Top-loading, Front Output

Media Width

Roll Feed: 8”-24” (203.2 mm – 610 mm)
Cut Sheet: 8.26”-24” (210 mm – 610 mm)

Print Head


Printing Software Utilities

Accounting Manager, Device Management Console, Direct Print Plus, Free Layout
Plus, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool,
PosterArtist, Canon PRINT Inkjet Selphy

Print Language

Printer: SGRaster, HP-GL/2, HP RTL, JPEG, CALS G4

Printer Dimensions (H x W x D) and Weight

(without basket and stand) 17.2” x 38.5” x 29.4”, 88.2 lbs
(with stand and basket) 41.7” x 38.5” x 34.1”, 112.2 lbs

Package Dimensions (H x W x D) and Weight

(main unit with pallet) 26.7” x 45.3” x 35.9”, 156.5 lbs


• Stand (SD-24)
• 2”/3” Roll Holder Set (RH2-28)
User-Replaceable Items –
Ink Tank (PFI-030/PFI-031)
Print Head (PF-06)
Maintenance Cartridge (MC-31)
Cutter Blade (CT-08)

What’s In The Box

Printer, Starter Ink Tanks BK/C/M/Y (55ml) MBK (80ml), 1 Print Head, Maintenance Cartridge (Installed), 2” Roll Holder, Installation Guide, User Registration Card, One Year Printer Warranty Statement, Print Head Warranty Statement, Call Center Notice, Media Compatibility Flyer, PosterArtist Web Notice Flyer, Safety and Environmental Information, iWR Service Terms Leaflet, USB port (High Speed), Power Cable and Screw, Gigabit Ethernet (Built-in)
