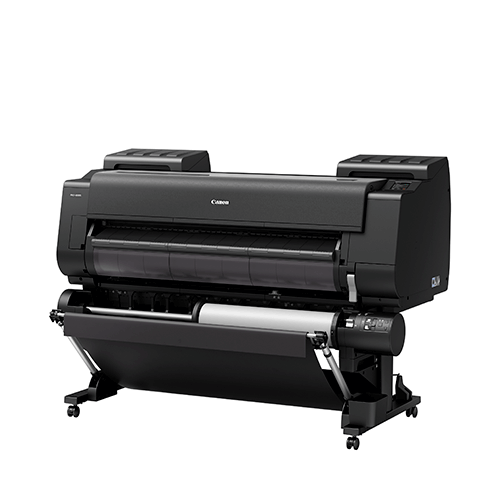

Canon imagePROGRAF PRO-4000S



Brand: Canon

Series: iPF Pro

Model No: Pro-4000S

Type: Ink

Size: 44″

Click Here to View the Brochure



Features :

  • New – LUCIA PRO pigment ink
  • New – advanced precision print head
  • New – image processing engine
  • New – rigid platform for best quality
  • Dual roll unit
  • Double-speed printing
  • Colour calibration
  • Great selection of software

Memory :

  • 3 GB

Additional information

Weight 100 lbs







Printing Technology

FINE: Full-Photolithography Nozzle Engineering

Head Configuration

12-Channel Integrated Type

Nozzle Configuration

1,536 Nozzles x 12 Channels: 18,432 Total

Minimum Droplet Size

4 Picoliters per Color

Maximum Print Resolution

Up to 2400 x 1200 dpi

Ink Information

Type: Pigment-Based LUCIA PRO Ink Technology
PFI-1100 (160 ml): PBK, MBK, C, M, Y, PC, PM, GY
PFI-1300 (330 ml): PBK, MBK, C, M, Y, PC, PM, GY
PFI-1700 (700 ml): PBK, MBK, C, M, Y, PC, PM, GY



Print Head

PF-10 (1)Colors

Hard Disk Capacity

320 GB



Photo Black, Matte Black, Cyan, Magenta, Yellow, Photo
Cyan, Photo Magenta, Gray

Ink Tank Shipped with Printer

8 Colors:
MBK/C/M/Y/PBK/PC/PM/GY (330 ml Tank,
Each Color)

Printer Stand



3.5" Color LCD Touch-screen

Size/Weight (with basket open)

46.0" (H) x 62.7" (W) x 38.7" (D)/Approx. 267 lb.



Media Feed

Front-Loading Roll Feed: One Roll, Front Output
Front-Loading Manual Feed: Front Loading, Front Output

Media Width

8" – 44" (Cut-Sheet and Roll)

Minimum Media Length


Maximum Print Length

59' (Roll Paper)
63" (Cut-Sheet)

Borderless Printing Widths


Media Thickness

.07 mm – .8 mm

Media Core Sizes

2" or 3" Core (with Supplied Adaptor)

Printable Margins

Roll Paper: Top: 3 mm; Bottom: 3 mm; Side: 3 mm
Cut-Sheet: Top: 3 mm; Bottom: 20 mm; Side: 3 mm

Maximum Media (Outer Dia.)

Roll 6.7" (170 mm)




Hi-Speed USB, 10/100/1000Base-T/TX, Wireless LAN
(IEEE 802.11 b/g /n)

Printer Language

Swift Graphic Raster (SGRaster)

Power Supply

AC 100-240 V (50-60 Hz

Power Consumption

Maximum: 107 W or Less
Standby: 3.6 W or Less
Power Off: 0.5 W or Less

Printing Software

imagePROGRAF Printer Driver, Print Studio Pro, Print
Plug-In for Microsoft Office, Direct Print & Share,†

PosterArtist Lite

Optional Software


OS Compatibility

32-bit: Windows Vista/7/8/8.1/10
64-bit: Windows Vista/7/8/8.1/10
Mac: OS X v10.7.5 – 10.11x


Accounting Manager, Device Management Console,
Media Configuration Tool, Quick Utility Toolbox

User-Replaceable Items

Print Head (PF-10)
Maintenance Cartridge (MC-30)
Rotary Cutter (CT-07)


Multifunction Roll System (RU-41),
Roll Holder Set (RH2-45)

Other Information



If Multifunction Roll is used.

** The maximum printable length varies, depending on the application, OS, and RIP used.
*** Wireless printing requires a working network with wireless 802.11b/g or 802.11n capability. Wireless
performance may vary based on terrain and distance between the printer and wireless network clients.

For the temperature and humidity conditions of papers, refer to the paper's packaging or
the supplied instructions.

Print Studio Pro plug-in software is compatible with Adobe Photoshop CS5/CS6/CC/CC (2014)/CC (2015),
Adobe Photoshop Lightroom 3/4/5/6, and Canon Digital Professional 3.12 or later.
† Direct Print & Share comes embedded with the imagePROGRAF large-format printers and is also available as a
free download at You must sign up for the GoogleTM service separately. This service is subject to Google's terms and conditions. Based on Google's current services. Subject to change at Google's discretion.
†† Only available with the PRO-4000S.
